AKUSENSE

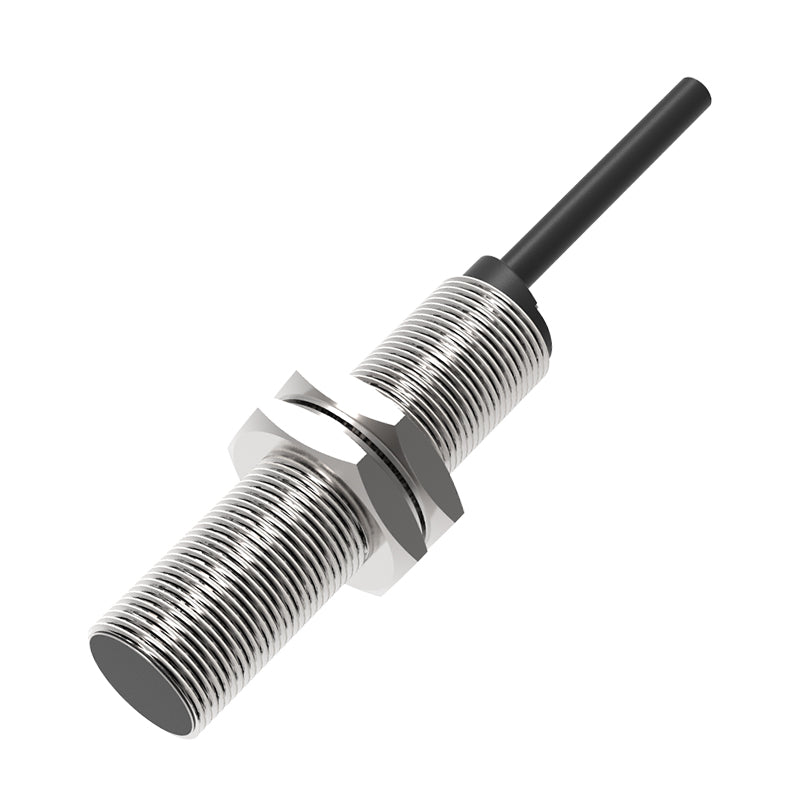

TYF12-06NO
TYF12-06NO
Regular price
€16,00 EUR
Regular price
Sale price
€16,00 EUR
Unit price
/
per
Couldn't load pickup availability
Share
| Model | TYF12-06NO |
| Category | Inductive Sensors |
| Housing | Cylindrical |
| Installation type | Flush |
| Output Mode | NPN |
| Sensing distance | 6mm |
| Sensor Type | Long Distance Type |
| Switching output | Normally Open |
| Thread size | M12 |
| Accessories | Nut M12x1 |
| Circuit Protection | Short circuit protection |
| Connection type | 2m/3 wire cable |
| Current consumption | ≤10mA |
| Detected objects | Metal sensor |
| Detects pipe wall thickness | - |
| Detect pipe size | — |
| Dielectric strength | <40V |
| Dimension | M12x45.0mm |
| Enclosure rating | IP67 |
| External input | None |
| Hysteresis | 0.15 |
| Indicator | Operating status: LED |
| Insulation resistance | ≥50MΩ (500VDC) between power terminal and housing |
| Leakage current | < 0.01 mA |
| Load current | 150mA |
| Material | Nickel-copper alloy +PBT |
| Operating Humidity | 35~85% |
| Operating Temperature | -25~+75℃ |
| Operating Voltage | 10~30V DC |
| Repeatability | 0.05 |
| Residual Voltage | 1.5 V or less |
| Sensing range adjustment | None |
| Sensing surface material | PBT |
| Sensor Type | Long Distance Type |
| Switching frequency | 0.8 kHz |
| Vibration resistance | 10 to 55Hz, amplitude 1.5mm, X/Y/Z axis, 2 hours each |
| Weight | 0.05kg |
