AKUSENSE

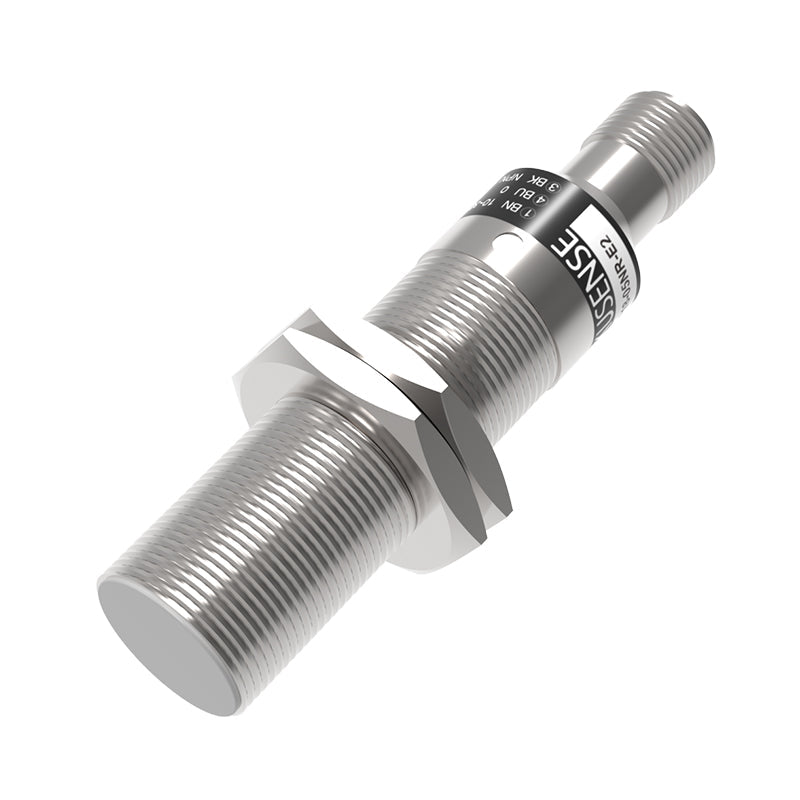

TPF18-05NR-E2
TPF18-05NR-E2
Regular price
€37,82 EUR
Regular price
Sale price
€37,82 EUR
Unit price
/
per
Couldn't load pickup availability
Share
| Model | TPF18-05NR-E2 |
| Category | Inductive Sensors |
| Housing | Cylindrical |
| Installation type | Flush |
| Output Mode | NPN |
| Sensing distance | 5mm |
| Sensor Type | IP69K High Protection Type |
| Switching output | Normally on/Normally off |
| Thread size | M18 |
| Accessories | Nut M18x1.0 |
| Circuit Protection | - |
| Connection type | M12/4 pin connector |
| Current consumption | ≤15mA |
| Detected objects | Metal sensor |
| Detects pipe wall thickness | - |
| Detect pipe size | — |
| Dielectric strength | 1000VAC (50/60Hz), 1 minute between the power terminal and housing |
| Dimension | M18x63.1mm |
| Enclosure rating | IP67,IP68(1m,7 days); IP69K(according to DIN 40050-9) |
| External input | None |
| Hysteresis | 1 ~ 20% |
| Indicator | Operating Status: LED (NC only) |
| Insulation resistance | ≥50MΩ (500VDC) between power terminal and housing |
| Leakage current | < 10 mu A |
| Load current | 200mA |
| Material | Stainless Steel +PPS(FDA approved) |
| Operating Humidity | 35~85% |
| Operating Temperature | -40~80℃(up to 100℃≤15s, ≤10% working time), -25~110℃ for NC |
| Operating Voltage | 10~30V DC |
| Repeatability | 0.05 |
| Residual Voltage | ≤2V |
| Sensing range adjustment | Available |
| Sensing surface material | PPS(FDA approved) |
| Sensor Type | IP69K High Protection Type |
| Switching frequency | 15kHz |
| Vibration resistance | 10 to 55Hz, amplitude 1.5mm, X/Y/Z axis, 2 hours each |
| Weight | 0.03kg |
