AKUSENSE

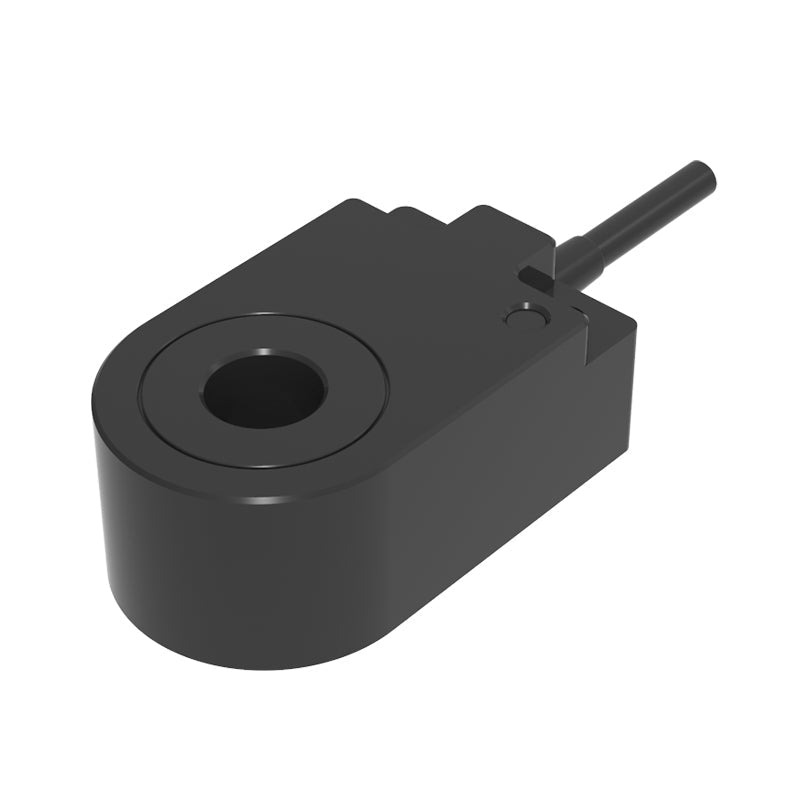

TH10-20NC
TH10-20NC
Regular price
€30,55 EUR
Regular price
Sale price
€30,55 EUR
Unit price
/
per
Couldn't load pickup availability
Share
| Model | TH10-20NC |
| Category | Inductive Sensors |
| Housing | Ring |
| Installation type | - |
| Output Mode | NPN |
| Sensing distance | — |
| Sensor Type | Ring-type |
| Switching output | Normally closed |
| Thread size | — |
| Accessories | - |
| Circuit Protection | Short circuit protection/reverse polarity protection |
| Connection type | 2m/3 wire cable |
| Current consumption | ≤15mA |
| Detected objects | Metal sensor |
| Detects pipe wall thickness | - |
| Detect pipe size | — |
| Dielectric strength | 1000VAC (50/60Hz), 1 minute between the power terminal and housing |
| Dimension | 50.0x30.0x20.0mm |
| Enclosure rating | IP67 |
| External input | None |
| Hysteresis | 0.15 |
| Indicator | Operating status: LED |
| Insulation resistance | ≥50MΩ (500VDC) between power terminal and housing |
| Leakage current | < 0.01 mA |
| Load current | 150mA |
| Material | ABS+PBT |
| Operating Humidity | 35~85% |
| Operating Temperature | -25~+75℃ |
| Operating Voltage | 10~30V DC |
| Repeatability | 0.02 |
| Residual Voltage | 1.5 V or less |
| Sensing range adjustment | None |
| Sensing surface material | PBT |
| Sensor Type | Ring-type |
| Switching frequency | 2kHz |
| Vibration resistance | 10 to 55Hz, amplitude 1.5mm, X/Y/Z axis, 2 hours each |
| Weight | 0.2kg |
