AKUSENSE

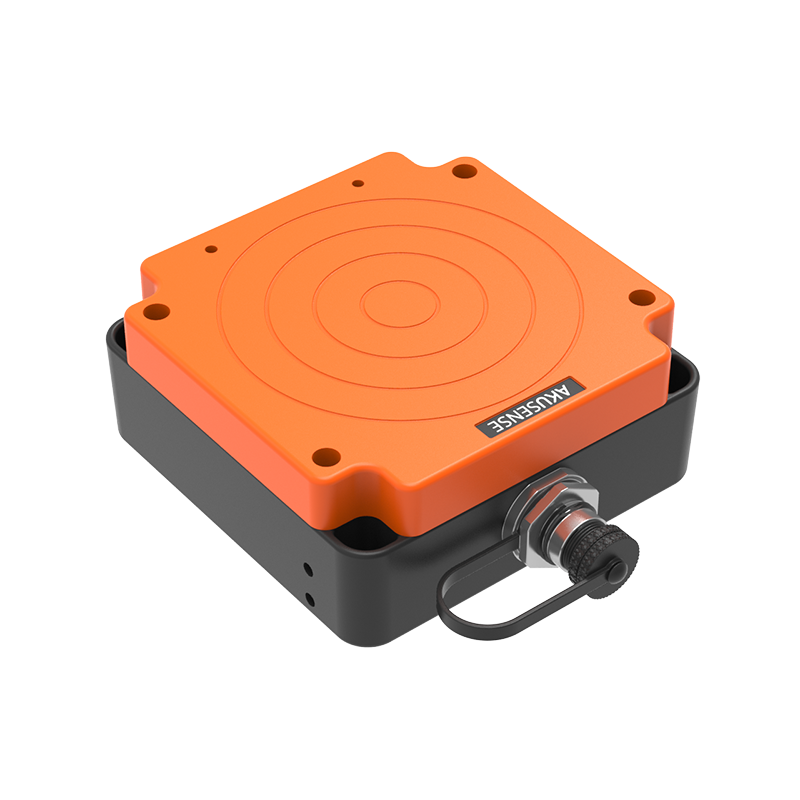

RVC-H610P-F
RVC-H610P-F
Regular price
€0,00 EUR
Regular price
Sale price
€0,00 EUR
Unit price
/
per
Couldn't load pickup availability
Share
| Model | RVC-H610P-F |
| Category | RFID |
| Communication Interface | RJ45, RS232, RS485 |
| Communication Protocol | ModbusTCP, ModbusRTU, TCP/UDP protocol |
| Detection distance | 1ISO15693:110mm ISO14443A:60mm(depending on label) |
| RF chip | ZC100 |
| WiFi (optional) | Support IEEE 802.11n /b/g |
| Working principle | RFID |
| Write distance | S015693:100mm ISO14443A:50mm(depending on label type) |
| Accessories | Cable |
| Antenna | PCB integrated antenna |
| Application Software Interface | Provide API development kit and C, C# and Java application routines |
| Communication rate | Serial communication rate 9600 ~ 115200bps,RJ45 communication rate 10/100Mbps |
| Connection | Industrial connection tailline one to five |
| Dimension | 95.3 x95x40. 1 mm |
| Enclosure rating | IEC IP67 |
| General Purpose Input/Output (GPIO) | 2 inputs, 2 outputs |
| Heating device (optional) | Low temperature automatic heating (-5 °) optional (determined according to the project site environment) |
| Housing | Square |
| Material | Aluminum alloy, plastic |
| Operating Frequency | 13.56 MHz |
| Operating Status | LED indicator light, buzzer |
| Operating Temperature | - 40 ℃ ~ + 85 ℃ |
| Output power | - |
| Output power adjustment | - |
| Peak speed of stored tags | - |
| Power Consumption | The maximum power consumption is 3W and the maximum starting current is 1A |
| Power Supply | Operating voltage DC9~24V |
| Receiving Sensitivity | - |
| Reliable firmware upgrade | Scalable upgrade mechanism |
| Storage temperature | Room temperature |
| Supported Countries&Regions | - |
| Tag RSSI | Support |
| Weight | About 1.1kg |
