AKUSENSE

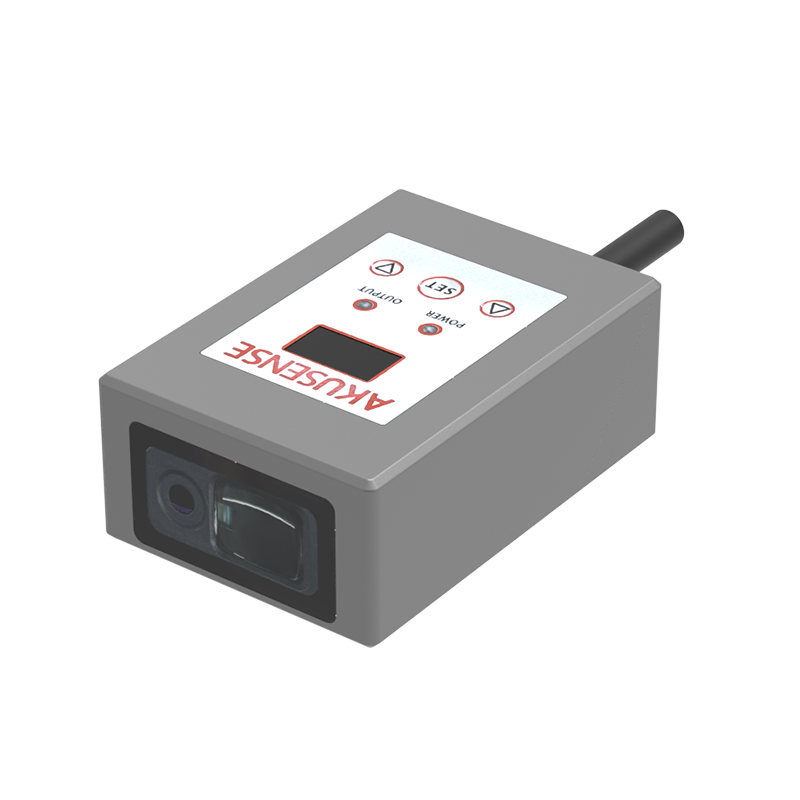

PX-FM80-IV-232
PX-FM80-IV-232
Regular price
€350,59 EUR
Regular price
Sale price
€350,59 EUR
Unit price
/
per
Couldn't load pickup availability
Share
| Model | PX-FM80-IV-232 |
| Category | TOF Long Distance Type |
| Communication protocol | - |
| Housing | Square |
| Measuring range | 0.05-80m |
| Optical working principle | Diffuse reflection |
| Output Mode | - |
| Reference distance | - |
| Working principle | TOF principle |
| Accessories | - |
| Ambient illumination | Ambient light ≤10000 Lux |
| Communication mode | RS232/4-20mA/0-10V |
| Connection type | 2M cable, terminal opening |
| Controls the output | - |
| Control the input | - |
| Current consumption | Normal 44mA, maximum 65mA |
| Data output rate | Single measurement: 1s Continuous measurement: 200ms Quick measurement: 30-100ms |
| Dielectric strength | - |
| Dimension | 42*61.2*23.5mm |
| Enclosure rating | IP65 |
| Expandable number | - |
| Input voltage | 12~26V DC |
| Insulation sesistance | - |
| Light source | Red laser, 655nm, Class 2 |
| Linearity | - |
| Load current | 150mA (MAX) |
| Material | Aluminum alloy housing |
| Measure force | - |
| Number of sensors that can be connected | - |
| Operating humidity | 5% ~ 95% |
| Operating temperature | -10℃~40℃ |
| Operating voltage | 24VDC±10% |
| Output voltage | Active low; 2 independent output |
| Power consumption | - |
| Precision | - |
| Protection circuit | - |
| Repeatability | < ±2mm |
| Resolution | 1mm |
| Response time | - |
| Sampling frequency | - |
| Spot size | - |
| Switching mode | - |
| Temperature drift characteristics | - |
| Use pressure range | - |
| Vibration resistance | - |
| Weight | 200g |
| Working mode | Single measurement/continuous measurement/rapid measurement |
