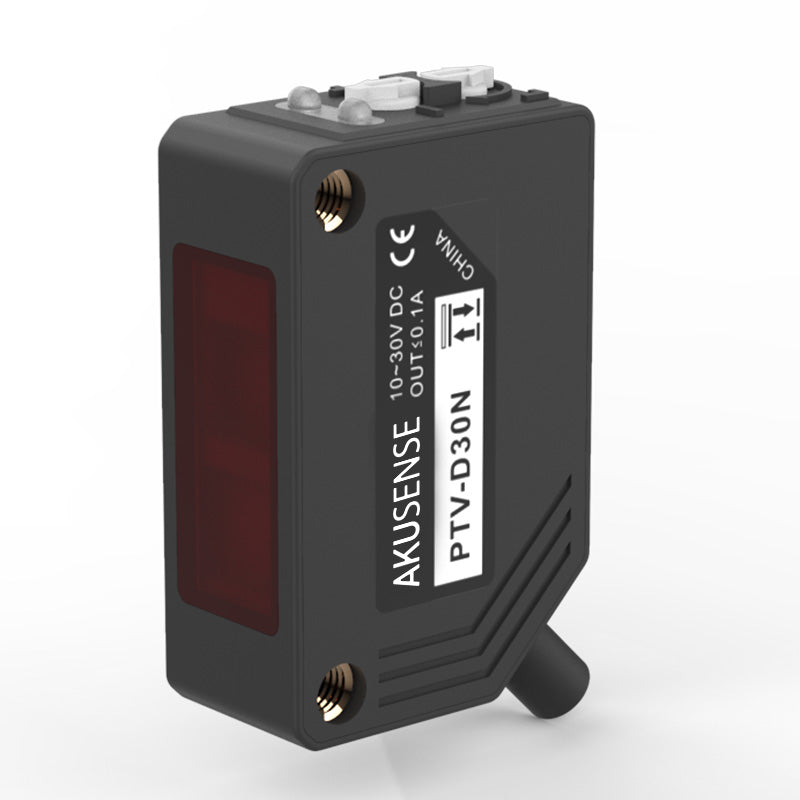

AKUSENSE
PTV-D30P
PTV-D30P
Regular price
€17,07 EUR
Regular price
Sale price
€17,07 EUR
Unit price
/
per
Couldn't load pickup availability
Share
| Model | PTV-D30P |
| Category | Photoelectric Sensor |
| Detection Range | 1~300mm |
| Housing Style | Square |
| Light Source | Infrared light 940nm (modulated) |
| Optical Working Principle | Diffuse Reflection |
| Output Mode | PNP open collector |
| Sensor Type | Square Type |
| Spot size | Not applicable (infrared light) |
| Accessories | Screwdriver |
| Ambient Light | LED light ≤600 Lux |
| Connection Method | 2m/3 core cable |
| Current consumed | ≤25mA |
| Detected Object | - |
| Dimensions | 11.0 x31.0 x20.0 mm |
| Hysteresis | ≤20% |
| Indicator Light | Output function: red LED, running status: green LED |
| Insulation Resistance | ≥50MΩ (500VDC) between power terminal and housing |
| Load Current | ≤100mA (30VDC) |
| Material | PBT+ fiberglass |
| Maximum Tightening Torque | 0.5 Nm or less |
| Operating Humidity | 35~85%RH (no condensation) |
| Operating Temperature | -25~55℃(without freezing) |
| Operating Voltage | 10~30V DC |
| Protection Circuit | Power supply reverse polarity protection/output reverse polarity protection/surge protection/short circuit protection |
| Protection Rating | IP65 |
| Repeatability | ≤5% |
| Residual Voltage | ≤1.5V (100mA) |
| Response time | 1ms |
| Sensitivity Adjustment | 1 turn potentiometer |
| Storage humidity | 35 to 95%RH (no condensation) |
| Storage temperature | -30℃~+70℃(without freezing) |
| Switching frequency | 2kHz |
| Switch mode | L.on (light entry action) /D.on (light blocking action) can be switched |
| Vibration Resistance | 10~55Hz, 1.5mm amplitude, 2 hours in each of the X, Y and Z directions |
| Weight | 0.05 kg |
| Withstand Voltage | 1000VAC (50/60Hz), 1 minute between the power terminal and housing |
