AKUSENSE

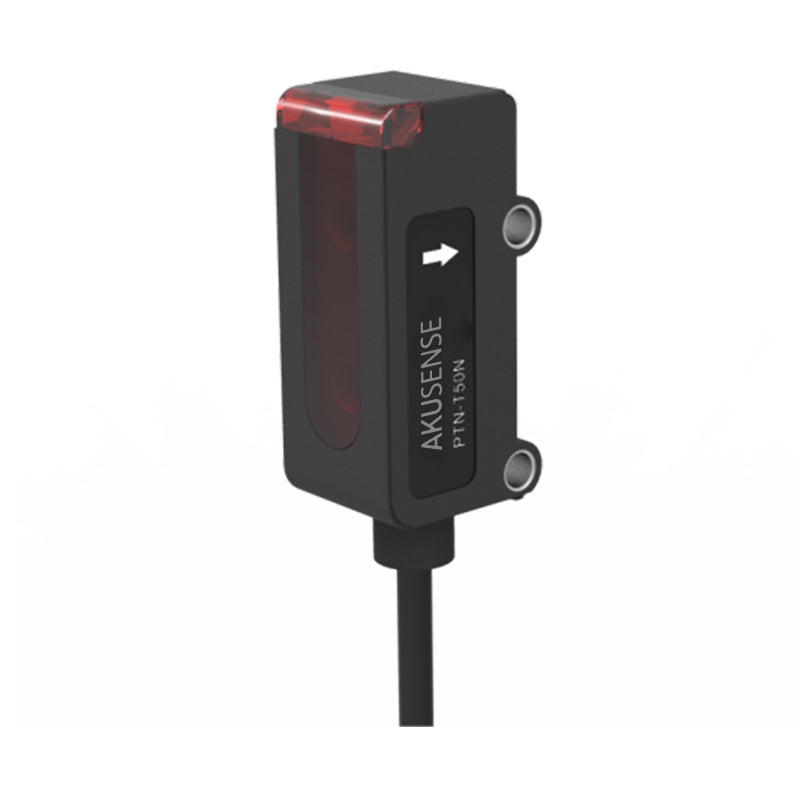

PTN-T50N
PTN-T50N
Regular price
€31,03 EUR
Regular price
Sale price
€31,03 EUR
Unit price
/
per
Couldn't load pickup availability
Share
| Model | PTN-T50N |
| Category | Photoelectric Sensor |
| Detection Range | 500mm (fix) |
| Housing Style | Square |
| Light Source | Infrared light 940nm |
| Optical Working Principle | Through-beam |
| Output Mode | NPN Open collector |
| Sensor Type | Square Type |
| Spot size | Not applicable (infrared light) |
| Accessories | Mounting screws |
| Ambient Light | LED light ≤600 Lux |
| Connection Method | 2m/4 core cable,2m/3 core cable |
| Current consumed | ≤30mA |
| Detected Object | Ø 1 mm |
| Dimensions | 10.0 x27.9 x12.2 mm |
| Hysteresis | — |
| Indicator Light | Output function: red LED, running status: green LED |
| Insulation Resistance | ≥50MΩ (500VDC) between power terminal and housing |
| Load Current | ≤100mA (24VDC) |
| Material | ABS |
| Maximum Tightening Torque | 0.5 Nm or less |
| Operating Humidity | 35~85%RH (no condensation) |
| Operating Temperature | -10~45℃ (without freezing) |
| Operating Voltage | 12~24V DC±10% |
| Protection Circuit | Power reverse protection/output short circuit protection |
| Protection Rating | IP64 |
| Repeatability | — |
| Residual Voltage | ≤1.5V (100mA) |
| Response time | ≤1ms |
| Sensitivity Adjustment | None |
| Storage humidity | 35 to 95%RH (no condensation) |
| Storage temperature | -10~55℃(without freezing) |
| Switching frequency | 2kHz |
| Switch mode | D.on (Blackout action) |
| Vibration Resistance | 10 to 55Hz, 1.5mm amplitude, 2 hours in each of the X, Y and Z directions |
| Weight | 0.038/0.040 kg |
| Withstand Voltage | 1000VAC (50/60Hz), 1 minute between the power terminal and housing |
