AKUSENSE

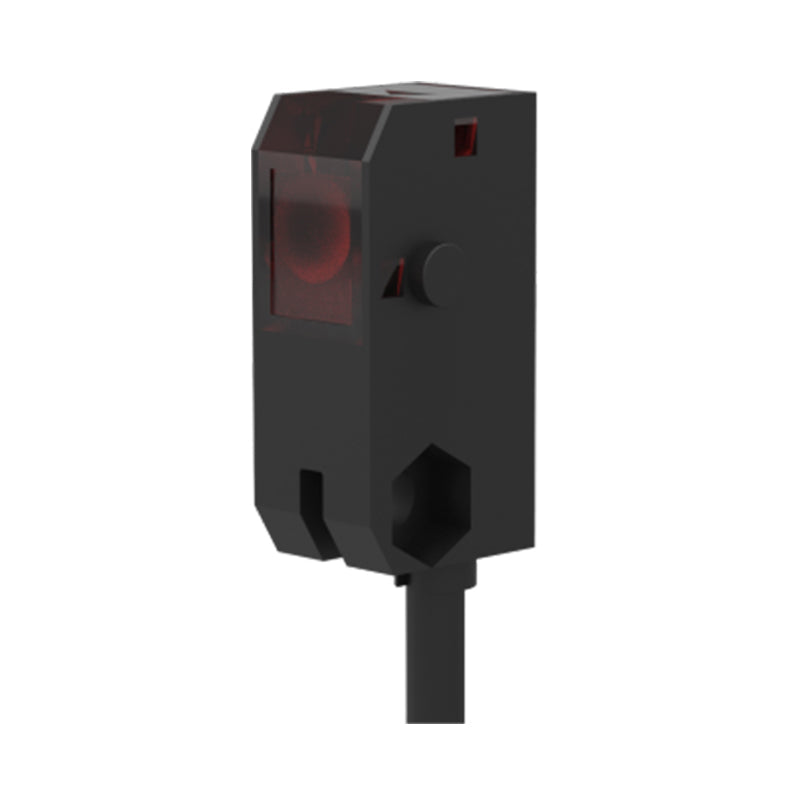

PTJ-T80NC-I
PTJ-T80NC-I
Regular price
€15,52 EUR
Regular price
Sale price
€15,52 EUR
Unit price
/
per
Couldn't load pickup availability
Share
| Model | PTJ-T80NC-I |
| Category | Photoelectric Sensor |
| Detection Range | 800mm (fix) |
| Housing Style | Square |
| Light Source | Infrared light 850nm (modulated) |
| Optical Working Principle | Through-beam |
| Output Mode | NPN Open collector |
| Sensor Type | Square Type |
| Spot size | Not applicable (infrared light) |
| Accessories | There is no |
| Ambient Light | Incandescent lamp ≤3000 Lux; Sunlight exposure ≤ 10,000 Lux |
| Connection Method | 2m/3 core cable |
| Current consumed | Transmitting end ≤20mA; Receiving end ≤20mA |
| Detected Object | Ø 6 mm |
| Dimensions | 10.0 x22.0 x11.0 mm |
| Hysteresis | — |
| Indicator Light | Output function: Yellow LED (receiver), operation status: green LED (transmitter) |
| Insulation Resistance | ≥20MΩ (500VDC) between power terminal and housing |
| Load Current | ≤50mA (24VDC) |
| Material | PC/ABS |
| Maximum Tightening Torque | 0.5 Nm or less |
| Operating Humidity | 35 to 90%RH (no condensation) |
| Operating Temperature | -20~50℃(without freezing) |
| Operating Voltage | 12~24V DC |
| Protection Circuit | Reverse polarity protection/short circuit protection |
| Protection Rating | IP64 |
| Repeatability | — |
| Residual Voltage | ≤2.0V (50mA) |
| Response time | 3.3ms |
| Sensitivity Adjustment | None |
| Storage humidity | 35 to 90%RH (no condensation) |
| Storage temperature | -30℃~+70℃(without freezing) |
| Switching frequency | 0.06 kHz |
| Switch mode | L.on (into light action) |
| Vibration Resistance | 10 to 55Hz, 1.5mm amplitude, 2 hours in each of the X, Y and Z directions |
| Weight | 0.045 kg |
| Withstand Voltage | 1000VAC (50/60Hz), 1 minute between the power terminal and housing |
