AKUSENSE

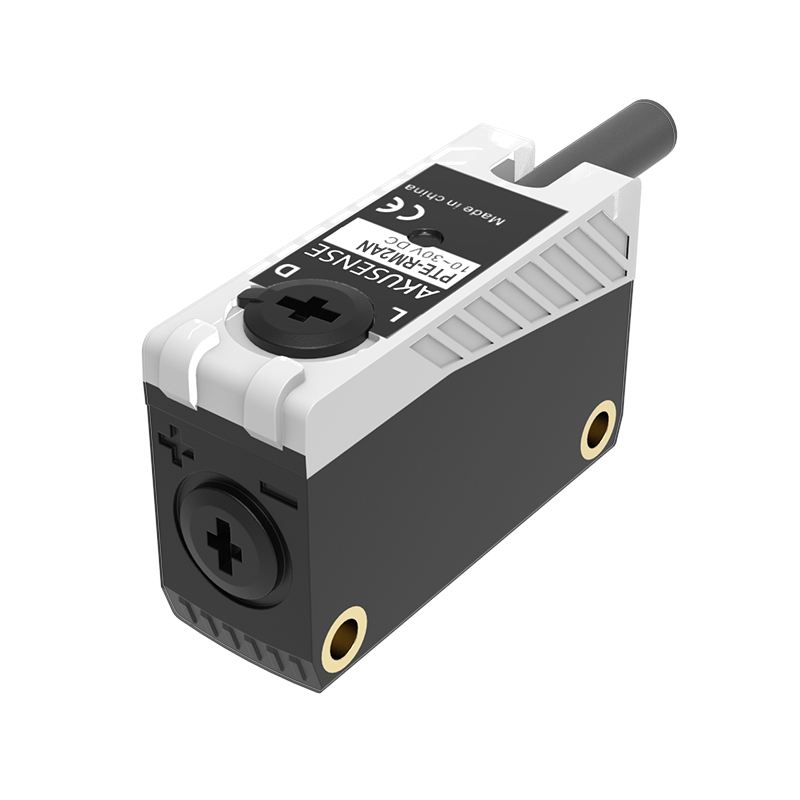

PTE-RM2AN
PTE-RM2AN
Regular price
€0,00 EUR
Regular price
Sale price
€0,00 EUR
Unit price
/
per
Couldn't load pickup availability
Share
| Model | PTE-RM2AN |
| Category | Photoelectric Sensor |
| Detection Range | 1~2000mm |
| Housing Style | Square |
| Light Source | Red LED 660nm (modulated) |
| Optical Working Principle | Retroreflective |
| Output Mode | NPN Open collector |
| Sensor Type | Square Type |
| Spot size | At 2m: 4cm x 4cm |
| Accessories | Screwdriver, bracket, screws and nuts |
| Ambient Light | Incandescent lamp ≤3000 Lux; Sunlight exposure ≤ 10,000 Lux |
| Connection Method | 2M/ 3-core cable 4mm diameter |
| Current consumed | ≤21mA |
| Detected Object | 18mm |
| Dimensions | 20.0 x31.0 x11.0 mm |
| Hysteresis | — |
| Indicator Light | Working indicator light: green; Action light: red |
| Insulation Resistance | - |
| Load Current | ≤100mA |
| Material | PBT |
| Maximum Tightening Torque | 0.5 Nm or less |
| Operating Humidity | 35~85%RH (no condensation) |
| Operating Temperature | -25~55℃(without freezing) |
| Operating Voltage | 10~30V DC |
| Protection Circuit | Reverse polarity protection/surge protection/short circuit protection |
| Protection Rating | IP67 |
| Repeatability | — |
| Residual Voltage | < 1.5V (load current ≤100mA) |
| Response time | ≤1ms |
| Sensitivity Adjustment | Single-turn potentiometer |
| Storage humidity | 35~95%RH |
| Storage temperature | -30~+70℃ |
| Switching frequency | 500hz |
| Switch mode | L.on (light entry action) /D.on (light blocking action) can be switched |
| Vibration Resistance | 10~55Hz, 1.5mm amplitude, 2 hours in each of the X, Y and Z directions |
| Weight | 0.050 kg |
| Withstand Voltage | - |
