AKUSENSE

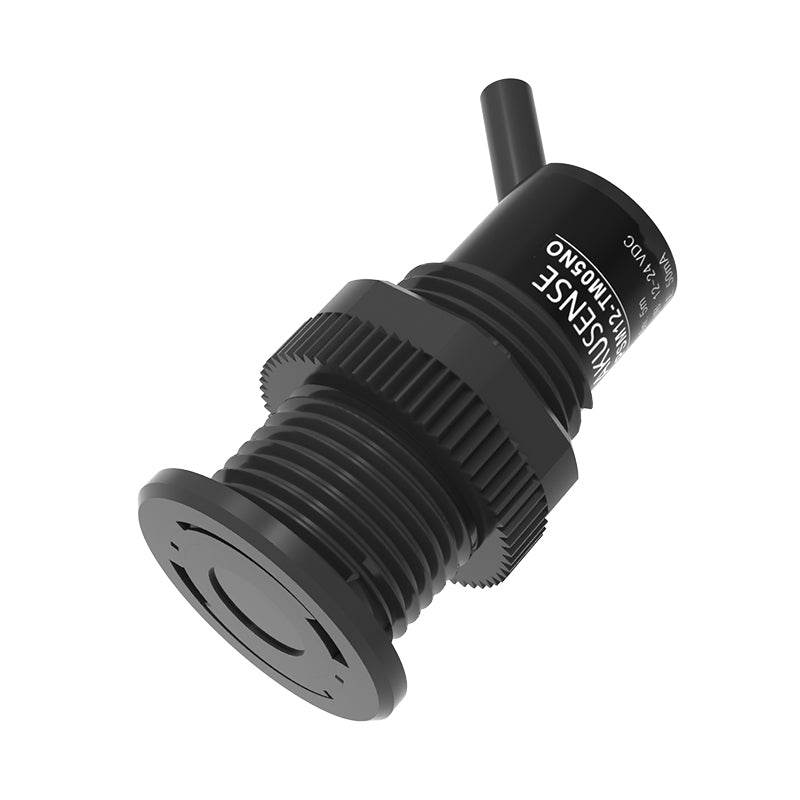

PSM12-TM05NC
PSM12-TM05NC
Regular price
€0,00 EUR
Regular price
Sale price
€0,00 EUR
Unit price
/
per
Couldn't load pickup availability
Share
| Model | PSM12-TM05NC |
| Category | Photoelectric Sensor |
| Detection Range | 5000mm (fix) |
| Housing Style | Cylinder Shape |
| Light Source | Infrared light |
| Optical Working Principle | Through-beam |
| Output Mode | NPN Open collector |
| Sensor Type | Cylindrical Type |
| Spot size | - |
| Accessories | Nut M12 |
| Ambient Light | Incandescent lamp ≤3000 Lux; Sunlight exposure ≤ 10,000 Lux; LED lights ≤5000 Lux |
| Connection Method | 2M/2 core rubber insulated flexible cable (light projector) 2M/3 core rubber insulated flexible cable (light receiver) |
| Current consumed | Transmitting end ≤18mA, receiving end ≤15mA |
| Detected Object | 8mm |
| Dimensions | M12x28. 0 mm |
| Hysteresis | — |
| Indicator Light | Output function: Orange LED, Operating status: Green LED |
| Insulation Resistance | ≥50MΩ (500VDC) between power terminal and housing |
| Load Current | ≤50mA (24VDC) |
| Material | PC |
| Maximum Tightening Torque | - |
| Operating Humidity | 35~85%RH (no condensation) |
| Operating Temperature | -25~55℃(without freezing) |
| Operating Voltage | 12~24V DC±10% |
| Protection Circuit | Reverse polarity protection/short circuit protection |
| Protection Rating | IP67 |
| Repeatability | — |
| Residual Voltage | ≤1.0V (50mA) |
| Response time | 2ms |
| Sensitivity Adjustment | None |
| Storage humidity | 30~90%RH (no condensation) |
| Storage temperature | -30℃~+70℃(without freezing) |
| Switching frequency | 1kHz |
| Switch mode | D.on (Blackout action) |
| Vibration Resistance | 10~55Hz, 1.5mm amplitude, 2 hours in each of the X, Y and Z directions |
| Weight | 0.025 kg |
| Withstand Voltage | 1000VAC (50/60Hz), 1 minute between the power terminal and housing |
