AKUSENSE

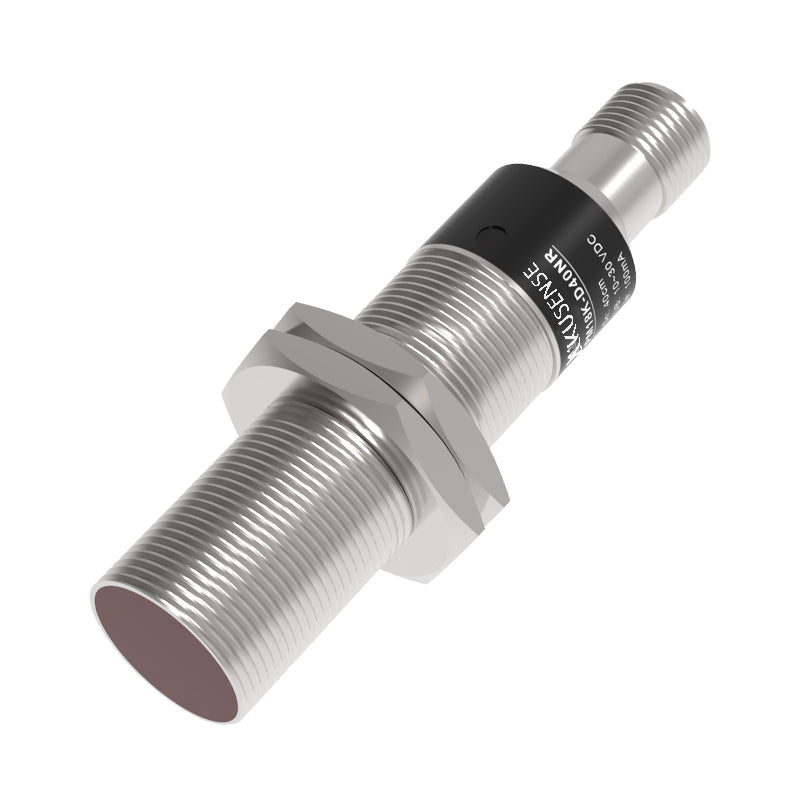

PM18K-D40NR
PM18K-D40NR
Regular price
€0,00 EUR
Regular price
Sale price
€0,00 EUR
Unit price
/
per
Couldn't load pickup availability
Share
| Model | PM18K-D40NR |
| Category | Photoelectric Sensor |
| Detection Range | 400mm (fix) |
| Housing Style | Cylinder Shape |
| Light Source | Infrared light 880nm |
| Optical Working Principle | Diffuse Reflection |
| Output Mode | NPN |
| Sensor Type | IP69K High Protection Type |
| Spot size | - |
| Accessories | Nut M18x1 |
| Ambient Light | Incandescent lamp ≤5000 Lux; Sunlight exposure ≤ 10,000 Lux |
| Connection Method | M12/4 pin plug |
| Current consumed | ≤35mA |
| Detected Object | - |
| Dimensions | M18X83mm |
| Hysteresis | ≤10% |
| Indicator Light | Output function: Yellow LED, automatic sensitivity setting: green LED |
| Insulation Resistance | ≥50MΩ (500VDC) between power terminal and housing |
| Load Current | ≤100mA (30VDC) |
| Material | Stainless steel 316 |
| Maximum Tightening Torque | - |
| Operating Humidity | 35~85%RH (no condensation) |
| Operating Temperature | -25~80℃(without freezing) |
| Operating Voltage | 10~30V DC±10% |
| Protection Circuit | Reverse polarity protection/short-time overvoltage protection |
| Protection Rating | IP67, IP68 (1M, 7M/ day); IP69K (up to 40050-9 standard) |
| Repeatability | 0.05 |
| Residual Voltage | ≤2.0V (100mA) |
| Response time | 2ms |
| Sensitivity Adjustment | None |
| Storage humidity | 35 to 95%RH (no condensation) |
| Storage temperature | -30~80℃(without freezing) |
| Switching frequency | 500Hz |
| Switch mode | L.on (light entry action) /D.on (light blocking action) can be switched |
| Vibration Resistance | 10~55Hz, 1.5mm amplitude, 2 hours in each of the X, Y and Z directions |
| Weight | 0.05 kg |
| Withstand Voltage | 1000VAC (50/60Hz), 1 minute between the power terminal and housing |
