AKUSENSE

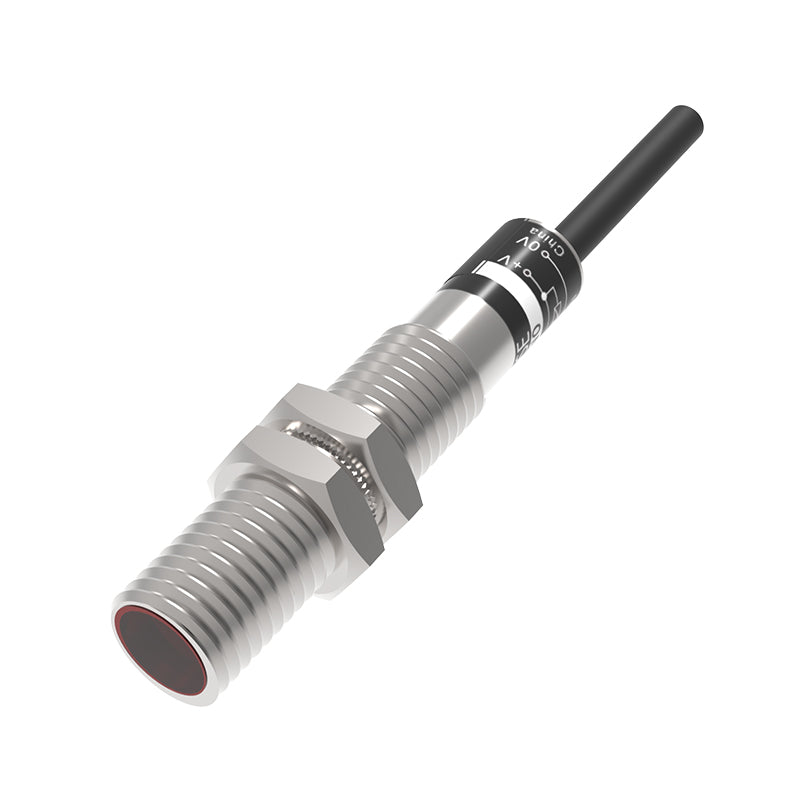

PM08-D03PO
PM08-D03PO
Regular price
€34,14 EUR
Regular price
Sale price
€34,14 EUR
Unit price
/
per
Couldn't load pickup availability
Share
| Model | PM08-D03PO |
| Category | Photoelectric Sensor |
| Detection Range | 30mm (fix) |
| Housing Style | Cylinder Shape |
| Light Source | Infrared light 940nm |
| Optical Working Principle | Diffuse Reflection |
| Output Mode | PNP open collector |
| Sensor Type | Cylindrical Type |
| Spot size | Not applicable (infrared light) |
| Accessories | Nut M8x1 |
| Ambient Light | Incandescent lamp ≤3000 Lux; Sunlight exposure ≤ 10,000 Lux; LED lights ≤1000 Lux |
| Connection Method | 2m/3 core cable |
| Current consumed | ≤30mA |
| Detected Object | White paper 30x30mm |
| Dimensions | M8x42. 0 mm |
| Hysteresis | ≤20% |
| Indicator Light | No display |
| Insulation Resistance | ≥20MΩ (500VDC) between power terminal and housing |
| Load Current | 50mA |
| Material | Stainless steel |
| Maximum Tightening Torque | - |
| Operating Humidity | 30~85%RH (no condensation) |
| Operating Temperature | -25~55℃(without freezing) |
| Operating Voltage | 12~24V DC±10% |
| Protection Circuit | Short circuit protection/reverse polarity protection/anti-mutual interference protection |
| Protection Rating | IP65 |
| Repeatability | 0.05 |
| Residual Voltage | ≤2.0V (50mA) |
| Response time | 3ms |
| Sensitivity Adjustment | None |
| Storage humidity | 35 to 95%RH (no condensation) |
| Storage temperature | -30℃~+70℃(without freezing) |
| Switching frequency | 0.67kHz |
| Switch mode | L.on (into light action) |
| Vibration Resistance | 10~55Hz, 1.5mm amplitude, 2 hours in each of the X, Y and Z directions |
| Weight | About 0.08kg |
| Withstand Voltage | 500VAC (50/60Hz), 1 minute between the power terminal and housing |
