AKUSENSE

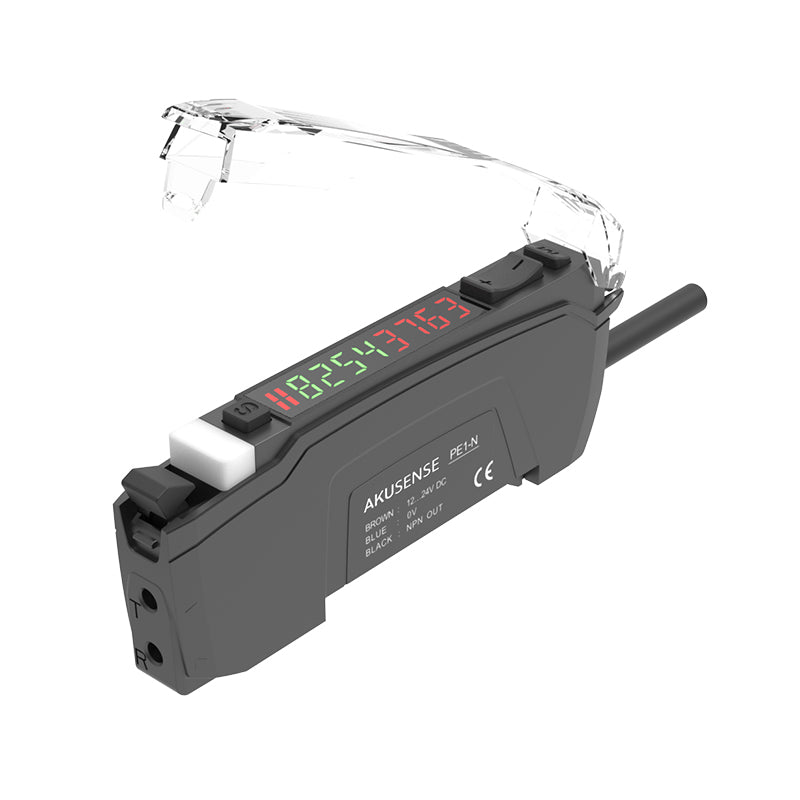

PE1-N
PE1-N
Regular price
€17,46 EUR
Regular price
Sale price
€17,46 EUR
Unit price
/
per
Couldn't load pickup availability
Share
| Model | PE1-N |
| Category | Fiber Amplifier |
| Accessories | - |
| Ambient illumination | Incandescent lamp: less than 3000 lux/Sunlight: less than 10000 lux |
| Connection Method | 2M/3 core cable |
| Current Consumption | ≤40mA |
| Delay Function | Turn-off delay, turn-on delay, turn-off delay, monopulse |
| Dimensions | 9.8 x39.0 x80.0 mm |
| Display Screen | 7 sections 8-bit digital display (red: 4 bits, green: 4 bits) |
| Indicator Lights | Operating status: Green LED, output status: red LED |
| Insulation Resistance | ≥20MΩ (500VDC) between power terminal and housing |
| Light Source | Red LED 630nm(modulated) |
| Load Current | ≤100mA (24VDC) |
| Material | PC |
| Operating Humidity | 35~85%RH (no condensation) |
| Operating Temperature | -20 ° C ~+50 ° C (without freezing) |
| Operating voltage | 12~24V DC±10% |
| Output Mode | Open NPN collector |
| Protection Circuit | Polarity reversal protection/surge protection/short circuit protection |
| Protection Rating | IP50 |
| Residual Voltage | <1.5V (100mA) |
| Response Time | 160 us (1 - HS) / 320 us (2 - FS) / 960 us (3 - ST) / 1.92 (4 - LG) ms/ms 3.84 (5 - PL) |
| Storage Humidity | 35 to 95%RH (no condensation) |
| Storage temperature | -30 ° C to +70 ° C (without freezing) |
| Switching Frequency | ≤6kHz |
| Switching Mode | Dark on/light on switch |
| Vibration resistance | 10~50Hz, double amplitude 1.5mm, 2 hours in each direction X, Y and Z |
| Weight | 0.05 kg |
| Withstand Voltage | 1000VAC (50/60Hz), 1 minute between the power terminal and housing |
