AKUSENSE

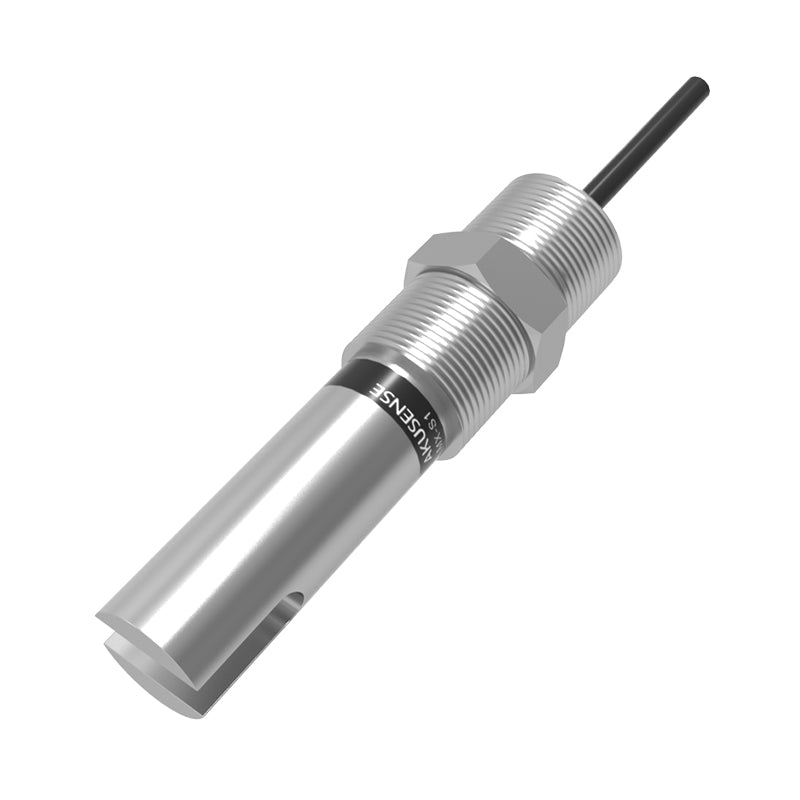

MX-S1
MX-S1
Regular price
€0,00 EUR
Regular price
Sale price
€0,00 EUR
Unit price
/
per
Couldn't load pickup availability
Share
| Model | MX-S1 |
| Category | Ultrasonic Sensor |
| Connection Method | Standard 305mm, can be customized according to customer needs |
| Detection Method | Thru-beam |
| Detection Range | - |
| Divergence Angle | - |
| Enclosure Shape | Cylindrical |
| Operating Principle | Ultrasonic Detection |
| Output Mode | Delay output: 1A single pole double throw (NO/NC); 30 V DV |
| Resolution | - |
| Response Time | - |
| Accessories | - |
| Ambient pressure | Up to 1000PSI |
| Delay | 0.5 s |
| Detection Range Adjustment | - |
| Dimensions | - |
| Hysteresis | - |
| Indicator light | - |
| Leakage current | 50 mu A or less |
| Load Current | - |
| Material | Stainless steel (316L) |
| Maximum Ripple | - |
| Maximum Tightening Torque | - |
| Mounting method | 3/4'NPT STD |
| Operating Current | - |
| Operating Voltage | 5~30VDC |
| Protection Circuit | Reverse protection, instantaneous protection |
| Protect Degree | - |
| Refresh rate | - |
| Repeatability | ≤2mm |
| Residual Voltage | - |
| Switching Frequency | - |
| Temperature Compensation | - |
| Temperature Drift | - |
| Transducer frequency | - |
| Ultrasonic frequency | - |
| Voltage Drop | - |
| Weight | - |
| Working Temperature | -29℃~80℃ |
