AKUSENSE

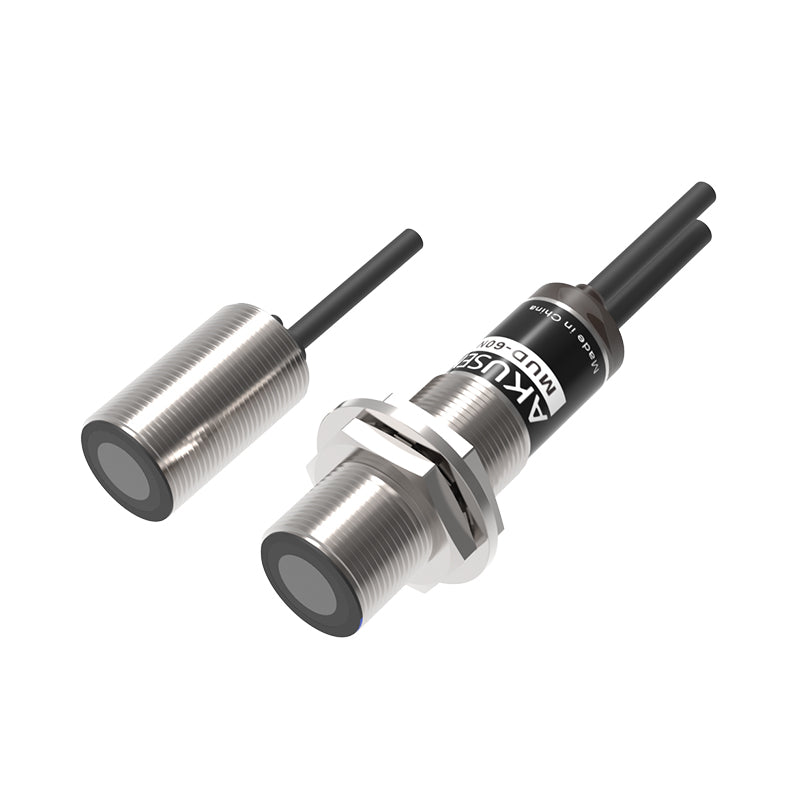

MUD-60P-200
MUD-60P-200
Regular price
€0,00 EUR
Regular price
Sale price
€0,00 EUR
Unit price
/
per
Couldn't load pickup availability
Share
| Model | MUD-60P-200 |
| Category | Ultrasonic Sensor |
| Connection Method | 2m PUR cable |
| Detection Method | Diffuse reflection |
| Detection Range | 20~60mm best :40mm+5mm |
| Divergence Angle | ±45° |
| Enclosure Shape | Cylindrical (pair of sensors) |
| Operating Principle | Ultrasonic Detection |
| Output Mode | PNP/ Output: lmax=200mA (-V+2V) |
| Resolution | - |
| Response Time | The automatic operation mode is 6.5ms |
| Accessories | Plastic nut M18x1 |
| Ambient pressure | - |
| Delay | - |
| Detection Range Adjustment | - |
| Dimensions | M18x1x60.0mm + M18x1x30.0mm |
| Hysteresis | < 1.9 s |
| Indicator light | Green light: single sheet, green light flashing: teaching, red light: double/multiple sheet, red light flashing: no paper |
| Leakage current | - |
| Load Current | ≤200mA |
| Material | Nickel-copper plating |
| Maximum Ripple | Plus or minus 10% |
| Maximum Tightening Torque | 15Nm |
| Mounting method | - |
| Operating Current | ≤50mA |
| Operating Voltage | 20~30VDC |
| Protection Circuit | Reverse polarity protection/short circuit protection |
| Protect Degree | IP65 |
| Refresh rate | - |
| Repeatability | - |
| Residual Voltage | 2V |
| Switching Frequency | 7Hz |
| Temperature Compensation | None |
| Temperature Drift | - |
| Transducer frequency | - |
| Ultrasonic frequency | 200kHz |
| Voltage Drop | - |
| Weight | 0.4 kg |
| Working Temperature | +5~+60℃ |
