AKUSENSE

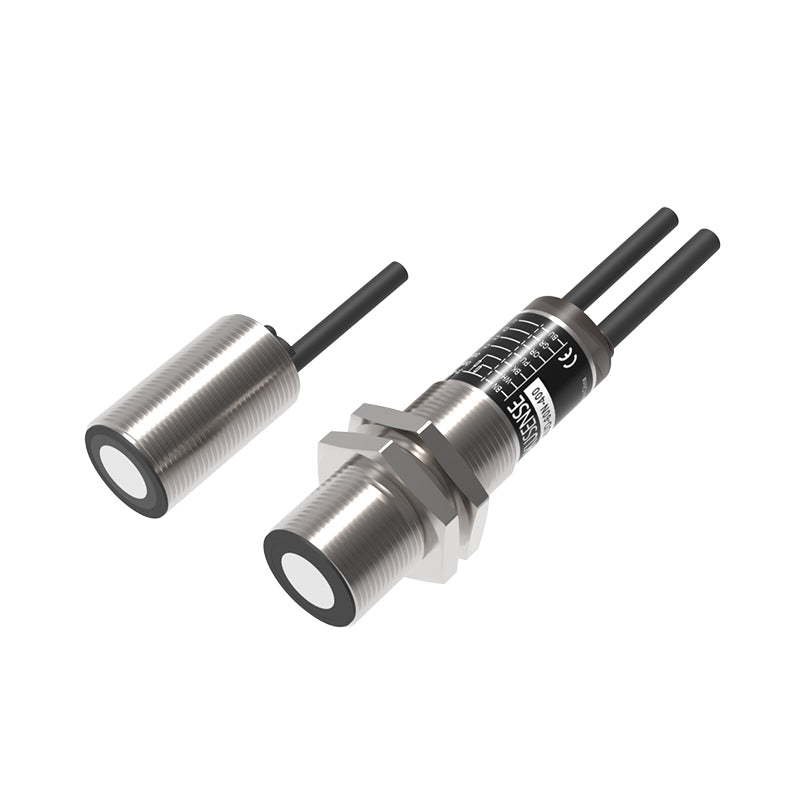

MUD-60P-18-GL
MUD-60P-18-GL
Regular price
€0,00 EUR
Regular price
Sale price
€0,00 EUR
Unit price
/
per
Couldn't load pickup availability
Share
| Model | MUD-60P-18-GL |
| Category | Ultrasonic Sensor |
| Connection Method | VC with six core cable, 2m |
| Detection Method | Diffuse reflection |
| Detection Range | 30~60mm |
| Divergence Angle | ±45° |
| Enclosure Shape | Cylindrical (pair of sensors) |
| Operating Principle | Ultrasonic Detection |
| Output Mode | Three PNP |
| Resolution | - |
| Response Time | 15ms |
| Accessories | Nut M18x1 |
| Ambient pressure | - |
| Delay | - |
| Detection Range Adjustment | With calibration mode |
| Dimensions | M18x79. 0 mm |
| Hysteresis | - |
| Indicator light | Operating status: LED |
| Leakage current | - |
| Load Current | ≤100mA |
| Material | Nickel-copper plating |
| Maximum Ripple | Plus or minus 10% |
| Maximum Tightening Torque | - |
| Mounting method | - |
| Operating Current | ≤50mA |
| Operating Voltage | 18~30VDC |
| Protection Circuit | Short circuit protection/overload protection |
| Protect Degree | IP65 |
| Refresh rate | 1ms |
| Repeatability | - |
| Residual Voltage | - |
| Switching Frequency | 20Hz |
| Temperature Compensation | None |
| Temperature Drift | - |
| Transducer frequency | 10Hz |
| Ultrasonic frequency | 200kHz |
| Voltage Drop | < 2V |
| Weight | 0.17 kg |
| Working Temperature | -20~70℃ |
