AKUSENSE

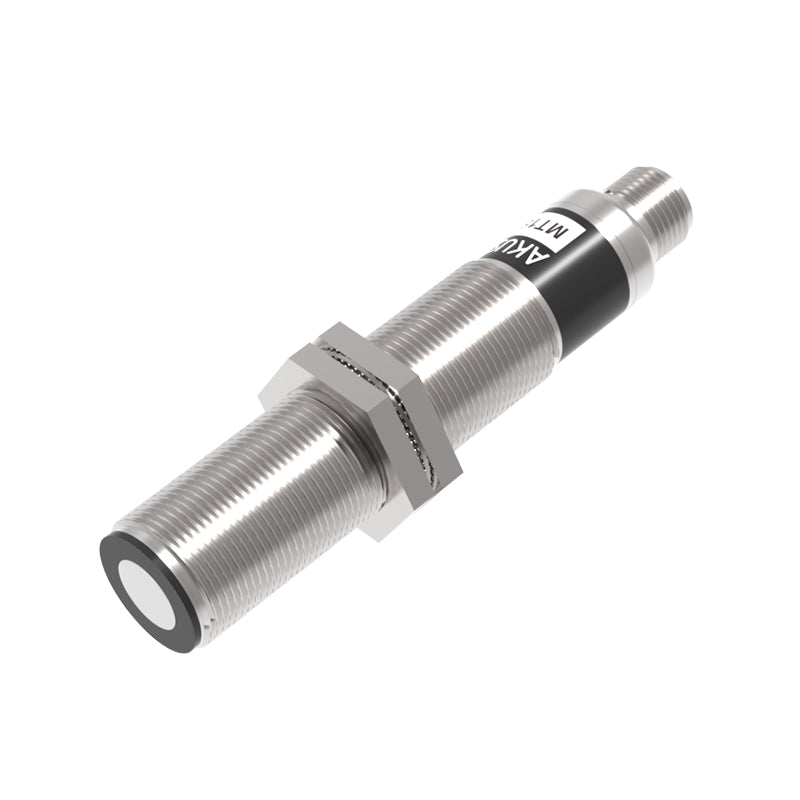

MT18-100N2
MT18-100N2
Regular price
€0,00 EUR
Regular price
Sale price
€0,00 EUR
Unit price
/
per
Couldn't load pickup availability
Share
| Model | MT18-100N2 |
| Category | Ultrasonic Sensor |
| Connection Method | V3 connector, 4 pins |
| Detection Method | Diffuse reflection |
| Detection Range | 60~1000mm |
| Divergence Angle | ±7° |
| Enclosure Shape | Cylindrical |
| Operating Principle | Ultrasonic Detection |
| Output Mode | NPN hysteresis mode |
| Resolution | 0.5mm |
| Response Time | 100ms |
| Accessories | Nut M18x1 |
| Ambient pressure | - |
| Delay | - |
| Detection Range Adjustment | - |
| Dimensions | M18x90. 7 mm |
| Hysteresis | < 1% |
| Indicator light | No target detected, learning status always lights up: red LED; When the target is detected, the learning state flashes: blue LED; Working mode: yellow LED; Power on: Green LED |
| Leakage current | - |
| Load Current | ≤200mA |
| Material | Nickel-copper plating |
| Maximum Ripple | Plus or minus 10% |
| Maximum Tightening Torque | 50Nm |
| Mounting method | - |
| Operating Current | ≤25mA |
| Operating Voltage | 9~30VDC |
| Protection Circuit | Anti-reverse protection/instantaneous overvoltage protection |
| Protect Degree | IP65 |
| Refresh rate | - |
| Repeatability | 0.003 |
| Residual Voltage | ≤10μA (30VDC) |
| Switching Frequency | 5Hz |
| Temperature Compensation | Have |
| Temperature Drift | 0.05% / ℃ |
| Transducer frequency | - |
| Ultrasonic frequency | 200kHz |
| Voltage Drop | - |
| Weight | 0.062 kg |
| Working Temperature | -20~70℃ |
