AKUSENSE

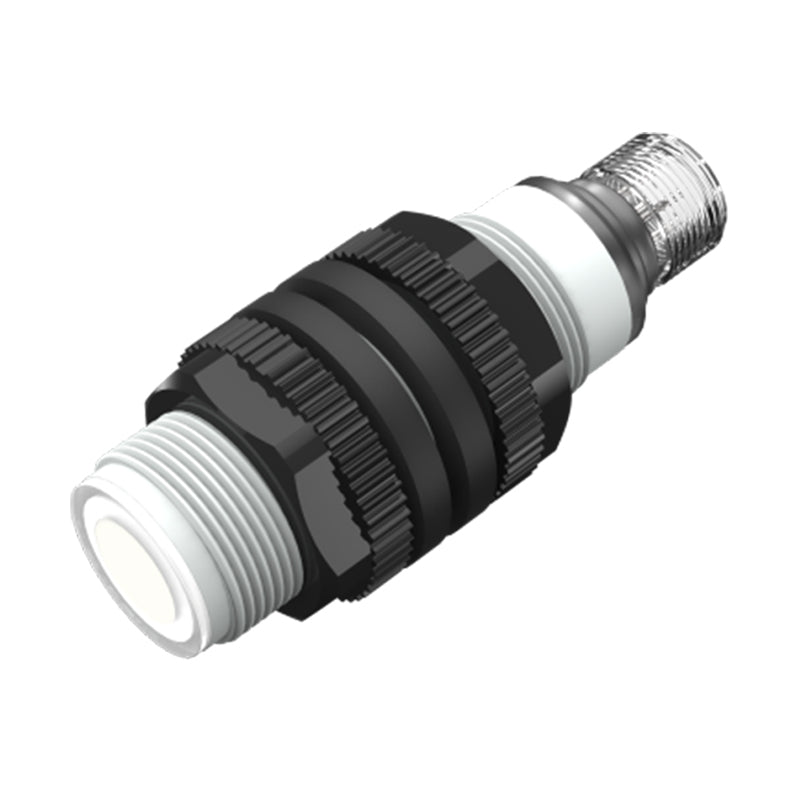

MS18-30P
MS18-30P
Regular price
€123,65 EUR
Regular price
Sale price
€123,65 EUR
Unit price
/
per
Couldn't load pickup availability
Share
| Model | MS18-30P |
| Category | Ultrasonic Sensor |
| Connection Method | M12/4 pin connector |
| Detection Method | Diffuse reflection |
| Detection Range | 40~300mm |
| Divergence Angle | 7°±2° |
| Enclosure Shape | Cylindrical |
| Operating Principle | Ultrasonic Detection |
| Output Mode | PNP |
| Resolution | 2mm |
| Response Time | 12ms |
| Accessories | Plastic nut M18x1 |
| Ambient pressure | - |
| Delay | - |
| Detection Range Adjustment | External teaching |
| Dimensions | M18x60. 4 mm |
| Hysteresis | 0.02 |
| Indicator light | - |
| Leakage current | - |
| Load Current | ≤100mA |
| Material | PBT |
| Maximum Ripple | Plus or minus 5% |
| Maximum Tightening Torque | 1Nm |
| Mounting method | - |
| Operating Current | ≤35mA |
| Operating Voltage | 15~30VDC |
| Protection Circuit | Reverse polarity protection/short circuit protection (automatic reset)/surge protection |
| Protect Degree | IP67 |
| Refresh rate | - |
| Repeatability | 0.02 |
| Residual Voltage | 2.2 Vmax (1 l = 100 ma) |
| Switching Frequency | 8Hz |
| Temperature Compensation | Have |
| Temperature Drift | 0.05 |
| Transducer frequency | - |
| Ultrasonic frequency | - |
| Voltage Drop | ≤2.2V (100mA) |
| Weight | 0.015 kg |
| Working Temperature | -20~70℃ |
