AKUSENSE

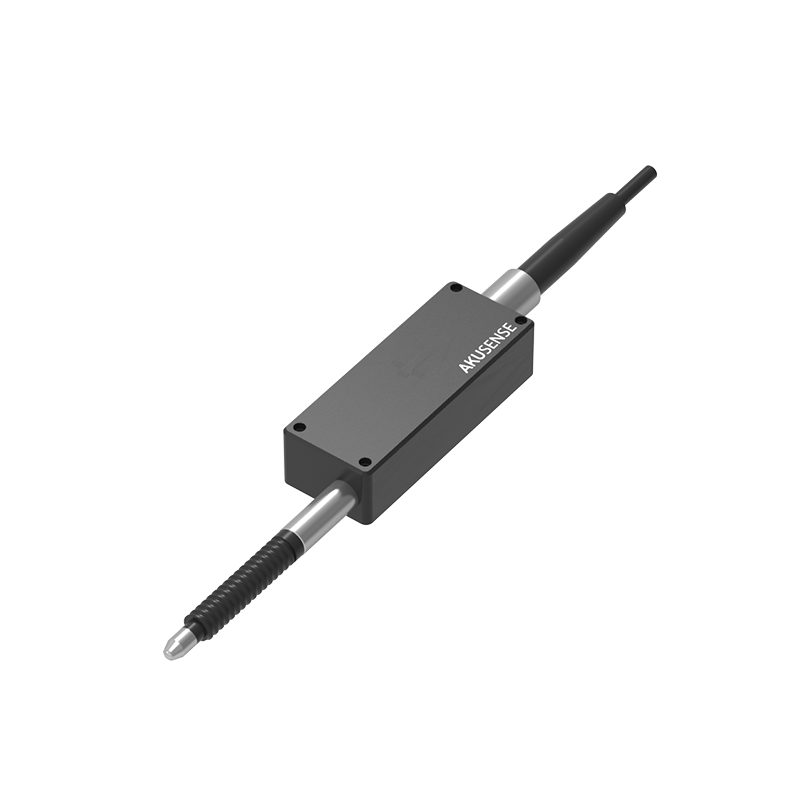

MRC-H12R04S
MRC-H12R04S
Regular price
€589,17 EUR
Regular price
Sale price
€589,17 EUR
Unit price
/
per
Couldn't load pickup availability
Share
| Model | MRC-H12R04S |
| Category | Contact Displacement Sensor |
| Communication protocol | Modbus RTU |
| Housing | Box type |
| Measuring range | 0~12.7mm |
| Optical working principle | Rebound style |
| Output Mode | - |
| Reference distance | - |
| Working principle | CMOS raster measurement (no tracking error) |
| Accessories | M8/4 core cable |
| Ambient illumination | - |
| Communication mode | - |
| Connection type | M8/4 pin connect wire |
| Controls the output | - |
| Control the input | - |
| Current consumption | < 50mA |
| Data output rate | - |
| Dielectric strength | - |
| Dimension | 146.9x26.2x18mm |
| Enclosure rating | IP65 |
| Expandable number | - |
| Input voltage | - |
| Insulation sesistance | - |
| Light source | - |
| Linearity | - |
| Load current | - |
| Material | Body: Aluminum alloy; Dust jacket: fluorine rubber; Sensor head: cemented carbide |
| Measure force | 1.1 to 1.2 N |
| Number of sensors that can be connected | - |
| Operating humidity | 35~80% RH (non-condensing) |
| Operating temperature | -10~50℃(without freezing) |
| Operating voltage | 5V DC |
| Output voltage | - |
| Power consumption | - |
| Precision | 1.4 microns or less |
| Protection circuit | - |
| Repeatability | - |
| Resolution | 0.2 mu m |
| Response time | 50ms |
| Sampling frequency | 40ms |
| Spot size | - |
| Switching mode | - |
| Temperature drift characteristics | - |
| Use pressure range | - |
| Vibration resistance | - |
| Weight | About 71.7g |
| Working mode | - |
