AKUSENSE

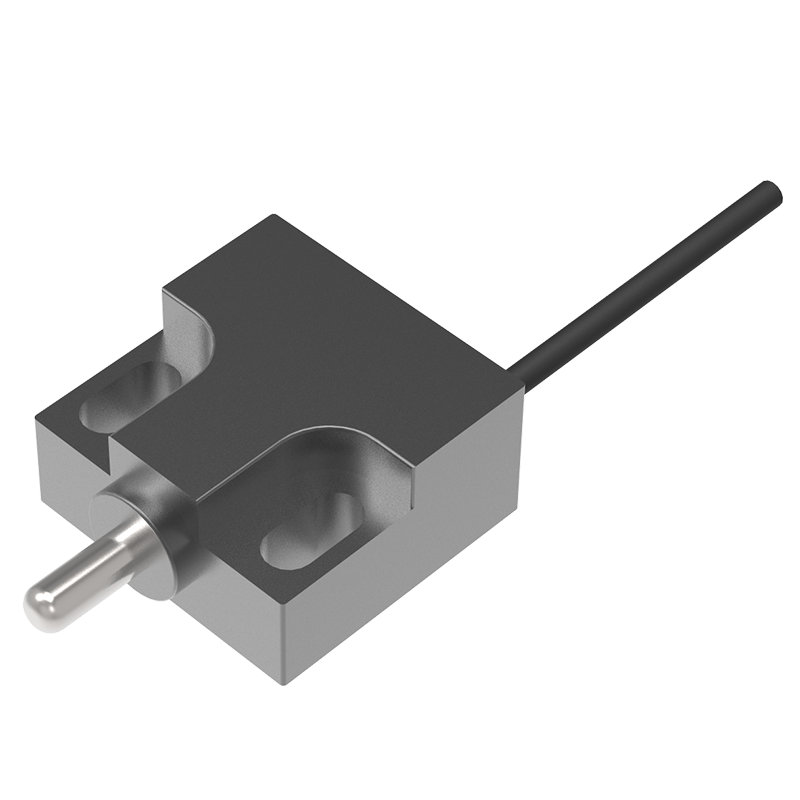

MR-T93Q-B
MR-T93Q-B
Regular price
€48,01 EUR
Regular price
Sale price
€48,01 EUR
Unit price
/
per
Couldn't load pickup availability
Share
| Model | MR-T93Q-B |
| Category | Contact Sensor |
| Detection distance | 0.8 mm |
| Housing | Square |
| Operate position(OP) | - |
| Operating frequency | 120 reps/min |
| Output type | NPN Normally Closed (NC) |
| Pre-travel(PT) | 0.3 0.8 mm |
| Travel | 8mm |
| Accessory | Nut |
| Connection | 1M/3 core cable |
| Current consumption | ≤80mA |
| Dielectric strength | AC1000V for 1 minute |
| Dimensions | 31x22x11mm |
| Enclosure rating | IP65 |
| Hysteresis | Less than 0.1mm |
| Indicator | red |
| Insulation strength | 250VDC≥20MΩ |
| Material | Shaft :SUS303: Housing: Glass FB reinforced PBT |
| Max. tightening torque | M3 nut mounting torque 0.3N·m |
| Operating force | 0.8 N |
| Operating humidity | 20%~95%RH, no condensation |
| Operating temperature | -20℃~+85℃ without freezing |
| Operating voltage | 12~24VDC |
| Output current | ≤80mA |
| Position repeatability | + / - 0.01 mm |
| Travel | 8mm |
| Weight | About 17.8g |
