AKUSENSE

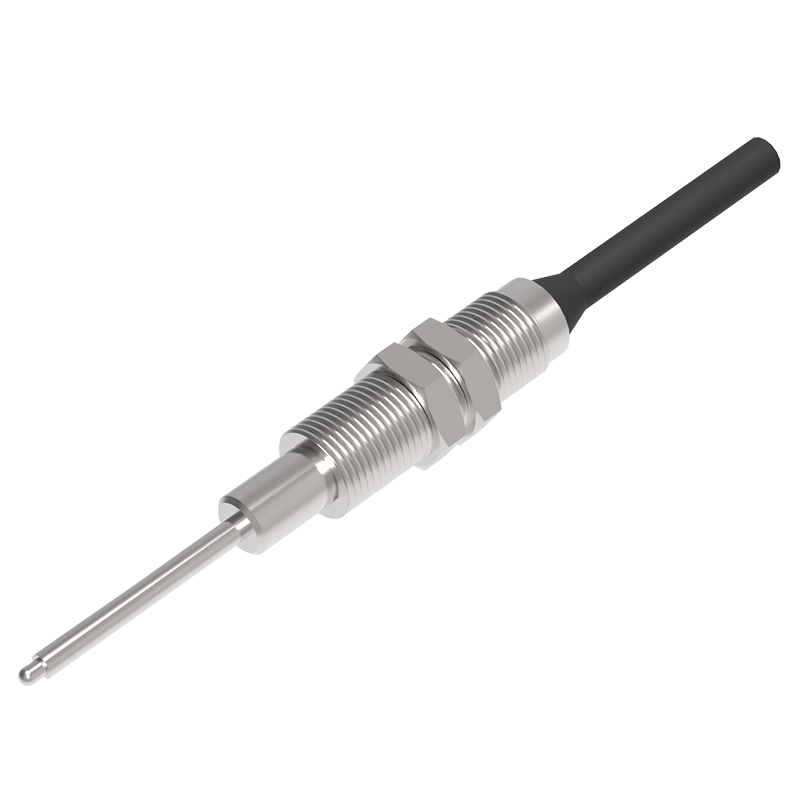

MR-T6N-B-40
MR-T6N-B-40
Regular price
€0,00 EUR
Regular price
Sale price
€0,00 EUR
Unit price
/
per
Couldn't load pickup availability
Share
| Model | MR-T6N-B-40 |
| Category | Contact Sensor |
| Detection distance | 1.2 mm |
| Housing | Cylindrical |
| Operate position(OP) | - |
| Operating frequency | 120 reps/min |
| Output type | NPN Normally Closed (NC) |
| Pre-travel(PT) | 0.4 ~ 0.7 mm |
| Travel | 1.2 mm |
| Accessory | Nut |
| Connection | 1M/3 core cable |
| Current consumption | ≤15mA |
| Dielectric strength | AC1000V for 1 minute |
| Dimensions | 7x8x25mm |
| Enclosure rating | IP65 |
| Hysteresis | Less than 0.1mm |
| Indicator | No indicator light |
| Insulation strength | 250VDC≥20MΩ |
| Material | SUS303 |
| Max. tightening torque | M6 nut mounting torque 2N·m |
| Operating force | 0.3 N |
| Operating humidity | 20%~95%RH, no condensation |
| Operating temperature | -20℃~+85℃ without freezing |
| Operating voltage | 5~24VDC |
| Output current | ≤15mA |
| Position repeatability | + / - 0.01 mm |
| Travel | 1.2 mm |
| Weight | About 13.1g |
