AKUSENSE

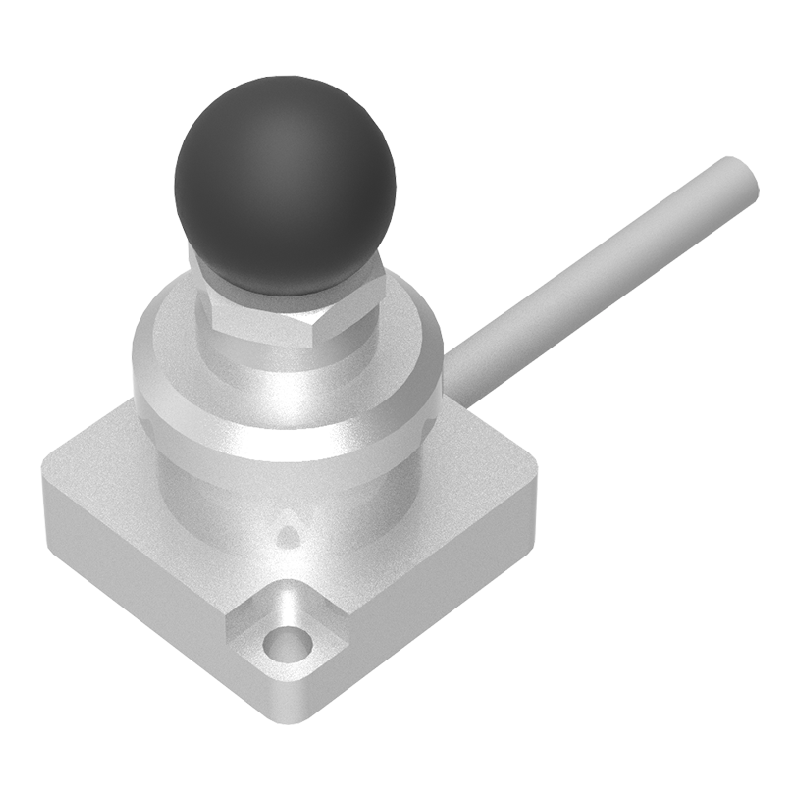

MR-T4X-H-LED
MR-T4X-H-LED
Regular price
€77,10 EUR
Regular price
Sale price
€77,10 EUR
Unit price
/
per
Couldn't load pickup availability
Share
| Model | MR-T4X-H-LED |
| Category | Contact Sensor |
| Detection distance | 3±0.5mm in 360 degree direction |
| Housing | Square |
| Operate position(OP) | 1.5 + / - 0.5 mm |
| Operating frequency | 120 reps/min |
| Output type | NPN Normally open (NO) |
| Pre-travel(PT) | - |
| Travel | 3±0.5mm in 360 degree direction |
| Accessory | Nut |
| Connection | 1M/3 core cable |
| Current consumption | ≤12mA |
| Dielectric strength | AC1000V for 1 minute |
| Dimensions | 26 x57x117. 5 mm |
| Enclosure rating | IP65 |
| Hysteresis | Less than 0.1mm |
| Indicator | Indicator light available |
| Insulation strength | 250VDC≥20MΩ |
| Material | Housing: cast zinc alloy; Handle: black phenolic |
| Max. tightening torque | - |
| Operating force | 1.5 N |
| Operating humidity | 20%~95%RH, no condensation |
| Operating temperature | -20℃~+85℃ without freezing |
| Operating voltage | 5~24VDC |
| Output current | ≤12mA |
| Position repeatability | + / - 0.01 mm |
| Travel | 3±0.5mm in 360 degree direction |
| Weight | About 13.1g |
