AKUSENSE

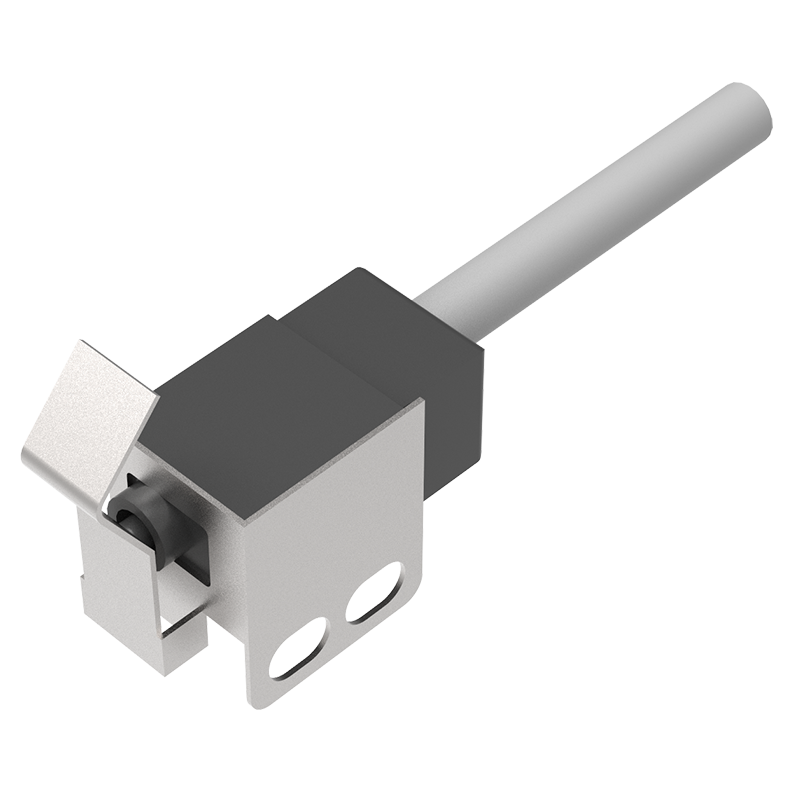

MR-T1QA-B-J
MR-T1QA-B-J
Regular price
€0,00 EUR
Regular price
Sale price
€0,00 EUR
Unit price
/
per
Couldn't load pickup availability
Share
| Model | MR-T1QA-B-J |
| Category | Contact Sensor |
| Detection distance | 0.7 mm |
| Housing | Square |
| Operate position(OP) | - |
| Operating frequency | 120 reps/min |
| Output type | NPN Normally Closed (NC) |
| Pre-travel(PT) | 0.1 ~ 0.4 mm |
| Travel | 0.7 mm |
| Accessory | Nut |
| Connection | 1M/3 core cable |
| Current consumption | ≤15mA |
| Dielectric strength | AC1000V for 1 minute |
| Dimensions | 14.9 x10.4 x7.4 mm |
| Enclosure rating | IP65 |
| Hysteresis | Less than 0.1mm |
| Indicator | No indicator light |
| Insulation strength | 250VDC≥20MΩ |
| Material | Housing: Heat resistant ABS: Rubber seal: Butadiene rubber |
| Max. tightening torque | - |
| Operating force | 0.6 N |
| Operating humidity | 20%~95%RH, no condensation |
| Operating temperature | -20℃~+85℃ without freezing |
| Operating voltage | 5~24VDC |
| Output current | ≤15mA |
| Position repeatability | + / - 0.001 mm |
| Travel | 0.7 mm |
| Weight | About 17.8g |
