AKUSENSE

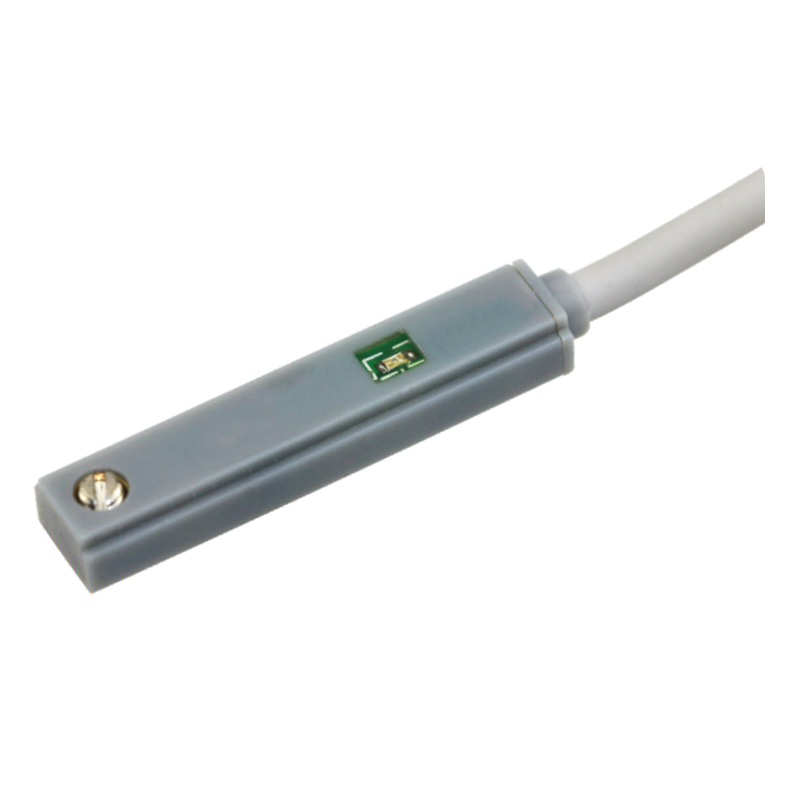

MR-30G
MR-30G
Regular price
€7,27 EUR
Regular price
Sale price
€7,27 EUR
Unit price
/
per
Couldn't load pickup availability
Share
| Model | MR-30G |
| Category | Magnetic Sensor |
| Operating Principle | Magnetic |
| Sensitivity | 25-1000G |
| Shell Style | Square |
| Switching logic | Electronic type: normally open type |
| Switch type | Two-wire contactless transistor type |
| Connection Method | 2.9∮, 2C, gray oil resistant TPU |
| Dimensions | 31.4 x6.2 x4.3 mm |
| Indicator Light | Red LED |
| Leakage current | 90μA Max.@28v |
| Material | Plastic |
| Maximum switching capacitance | 1.4W Max |
| Maximum Switching current | 50mA Max |
| Maximum switching frequency | 1000Hz |
| Operating Temperature | -10~70℃ |
| Operating voltage | 10~28V DC |
| Power Consumption | 40μA Max.@24V |
| Protection Circuit | Surge absorption protection |
| Protection Level | IP67 (EN6052) |
| Residual voltage drop | 2.65V Max@50mA DC |
| Shock Resistance | 50G |
| Suitable Load | - |
| Vibration Resistance | 9G |
| Weight | About 23.5g |
