AKUSENSE

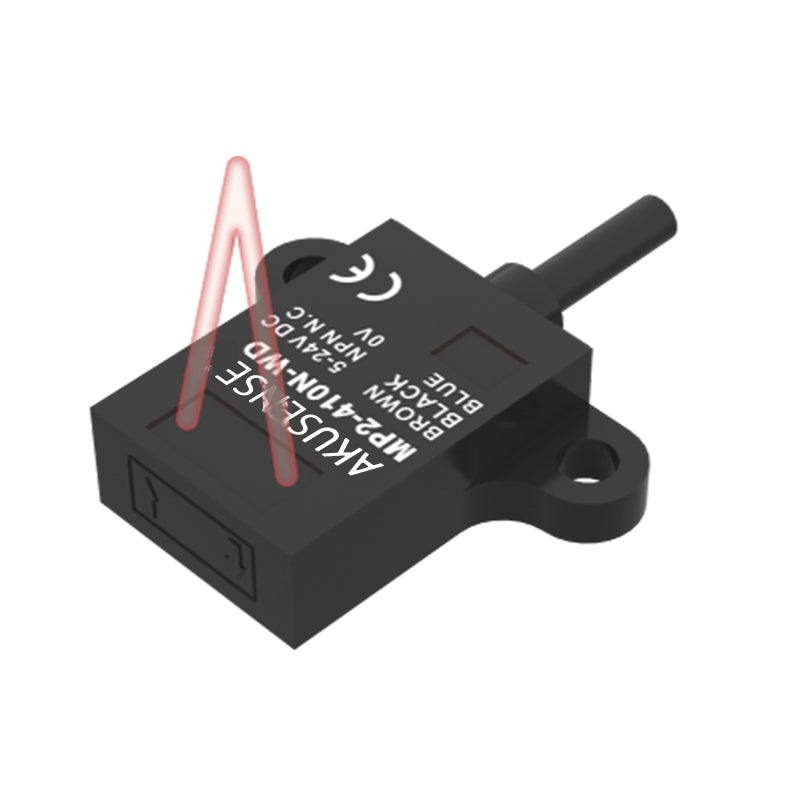

MP2-410N-WL
MP2-410N-WL
Regular price
€9,31 EUR
Regular price
Sale price
€9,31 EUR
Unit price
/
per
Couldn't load pickup availability
Share
| Model | MP2-410N-WL |
| Category | Photoelectric Sensor |
| Detection Range | 2.5~8.0mm |
| Housing Style | Flat square |
| Light Source | Red LED 880nm |
| Optical Working Principle | Diffuse Reflection |
| Output Mode | NPN Open collector |
| Sensor Type | Flat Type |
| Spot size | Not applicable (infrared light) |
| Accessories | - |
| Ambient Light | Incandescent lamp ≤3500 Lux; Sun exposure ≤3500 Lux |
| Connection Method | 2m/3 core cable |
| Current consumed | ≤25mA |
| Detected Object | - |
| Dimensions | 26.0 x20.5 x7.0 mm |
| Hysteresis | ≤20% |
| Indicator Light | Red LED |
| Insulation Resistance | ≥50MΩ (500VDC) between power terminal and housing |
| Load Current | ≤100mA (24VDC) |
| Material | PC |
| Maximum Tightening Torque | 0.5 Nm or less |
| Operating Humidity | 45 to 85%RH (no condensation) |
| Operating Temperature | -10~55℃(without freezing) |
| Operating Voltage | 12~24V DC |
| Protection Circuit | Reverse polarity protection/surge protection |
| Protection Rating | IP50 |
| Repeatability | 0.05 |
| Residual Voltage | ≤3.0V (100mA) |
| Response time | ≤1ms |
| Sensitivity Adjustment | None |
| Storage humidity | 35 to 90%RH (no condensation) |
| Storage temperature | -25~80℃(without freezing) |
| Switching frequency | 2kHz |
| Switch mode | L.on (into light action) |
| Vibration Resistance | 10 to 55Hz, 1.5mm amplitude, 2 hours in each of the X, Y and Z directions |
| Weight | 0.023 kg |
| Withstand Voltage | 1000VAC (50/60Hz), 1 minute between the power terminal and housing |
