AKUSENSE

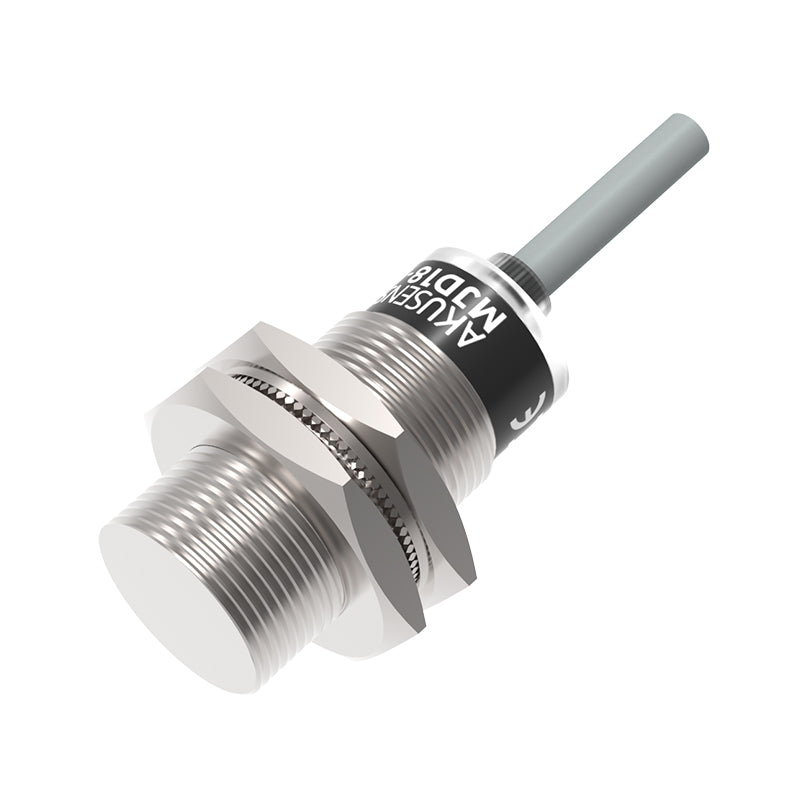

MJD18-W
MJD18-W
Regular price
€72,25 EUR
Regular price
Sale price
€72,25 EUR
Unit price
/
per
Couldn't load pickup availability
Share
| Model | MJD18-W |
| Category | Acceleration Sensors |
| Detect axis | 3(X,Y,Z) |
| Detect range | ±16g(MAX) |
| Digital output | RS-485(addressable) 57600 baud - 1 bit stop- no parity |
| Enclosure type | Cylindrical |
| Resolution | 15.62mg@±2g; 31.25mg@±4g;62.50mg@±8g; 125mg@±16g |
| Sesor type | Triaxial Measurement Sensor |
| Technical | MEMS(microelectromechanical system) |
| Working principle | Principle of inertia |
| Accessories | Nut |
| Connection method | 5 core cable |
| Current analog output | 4~20mA/0~20mA/0~24mA(programmable) |
| Dimensions | M18x40.5mm |
| Material | Stainless steel AISI 316L |
| Operating Voltage | 24VDC±20% |
| Power consumption | <1W |
| Protect degree | IP67 |
| Protect the circuit | Reverse polarity protection, surge protection |
| Resistance | Resistance (voltage) : 1k~1MΩ; Resistance (current) : 100~500 Ω |
| Resolution Digital Output | 16 bit@RS-485;12 bit@Analog output |
| Storage temperature | -30℃~+90℃ no condensation |
| Vibration frequency | 0~400Hz |
| Voltage analog output | 0~5V/0~10V(programmable) |
| Weight | 100g |
| Working environment humidity | <80% no condensation |
| Working temperature | - 25 ℃ ~ + 70 ℃ |
