AKUSENSE

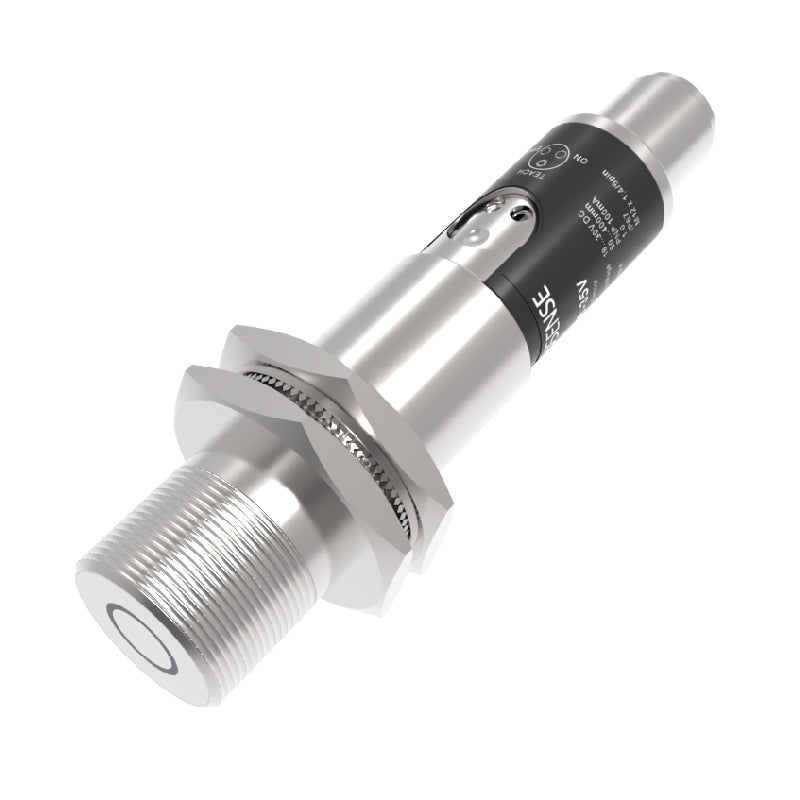

MD18-35V
MD18-35V
Regular price
€695,37 EUR
Regular price
Sale price
€695,37 EUR
Unit price
/
per
Couldn't load pickup availability
Share
| Model | MD18-35V |
| Category | Ultrasonic Sensor |
| Connection Method | M12/5 pin connector |
| Detection Method | Diffuse reflection |
| Detection Range | 50~400mm |
| Divergence Angle | ≤12° |
| Enclosure Shape | Cylindrical |
| Operating Principle | Ultrasonic Detection |
| Output Mode | NPN+0~10V |
| Resolution | 0.1mm |
| Response Time | 25ms |
| Accessories | Nut M18x1 |
| Ambient pressure | - |
| Delay | - |
| Detection Range Adjustment | Teach button |
| Dimensions | M18x86. 0 mm |
| Hysteresis | 2mm |
| Indicator light | Run/Error mode: LED; Switch status: LED |
| Leakage current | - |
| Load Current | ≤100mA |
| Material | Stainless steel |
| Maximum Ripple | - |
| Maximum Tightening Torque | - |
| Mounting method | - |
| Operating Current | ≤30mA |
| Operating Voltage | 18~30VDC |
| Protection Circuit | Short circuit protection/reverse polarity protection/overload protection |
| Protect Degree | IP67 |
| Refresh rate | - |
| Repeatability | 1mm |
| Residual Voltage | ≤10μA (30VDC) |
| Switching Frequency | 20Hz |
| Temperature Compensation | None |
| Temperature Drift | - |
| Transducer frequency | - |
| Ultrasonic frequency | 300kHz |
| Voltage Drop | ≤2.2V (100mA) |
| Weight | 0.062 kg |
| Working Temperature | -25~60℃ |
