AKUSENSE

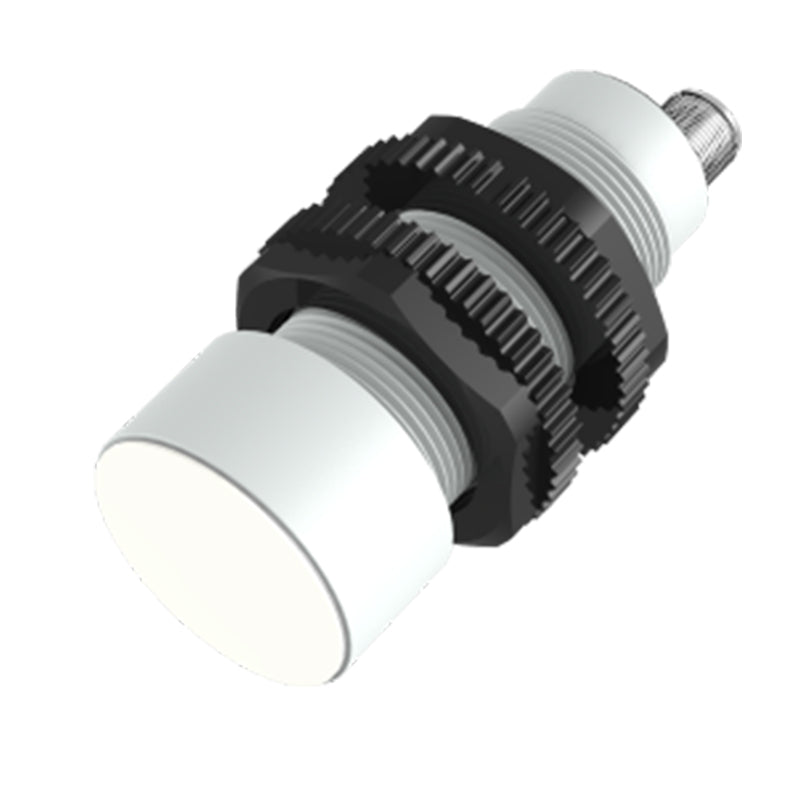

MC30-600N2
MC30-600N2
Regular price
€302,12 EUR
Regular price
Sale price
€302,12 EUR
Unit price
/
per
Couldn't load pickup availability
Share
| Model | MC30-600N2 |
| Category | Ultrasonic Sensor |
| Connection Method | M12/4 pin connector |
| Detection Method | Diffuse reflection |
| Detection Range | 350~6000mm |
| Divergence Angle | ±9° |
| Enclosure Shape | Cylindrical |
| Operating Principle | Ultrasonic Detection |
| Output Mode | 2NPN |
| Resolution | 6.0mm |
| Response Time | 500ms |
| Accessories | Nut M30x1.5 |
| Ambient pressure | - |
| Delay | - |
| Detection Range Adjustment | Teach button |
| Dimensions | M30x93. 0 mm |
| Hysteresis | 0.01 |
| Indicator light | - |
| Leakage current | - |
| Load Current | ≤100mA |
| Material | PBT |
| Maximum Ripple | Plus or minus 8% |
| Maximum Tightening Torque | 1.5 Nm |
| Mounting method | - |
| Operating Current | ≤50mA |
| Operating Voltage | 12~30VDC |
| Protection Circuit | Reverse polarity protection/short circuit (automatic reset)/pulse overvoltage protection |
| Protect Degree | IP67 |
| Refresh rate | - |
| Repeatability | 0.005 |
| Residual Voltage | 2.2V max.(1L=100mA) |
| Switching Frequency | 1Hz |
| Temperature Compensation | Have |
| Temperature Drift | Plus or minus 8% |
| Transducer frequency | - |
| Ultrasonic frequency | - |
| Voltage Drop | ≤2.2V (100mA) |
| Weight | 0.17 kg |
| Working Temperature | -20~70℃ |
