AKUSENSE

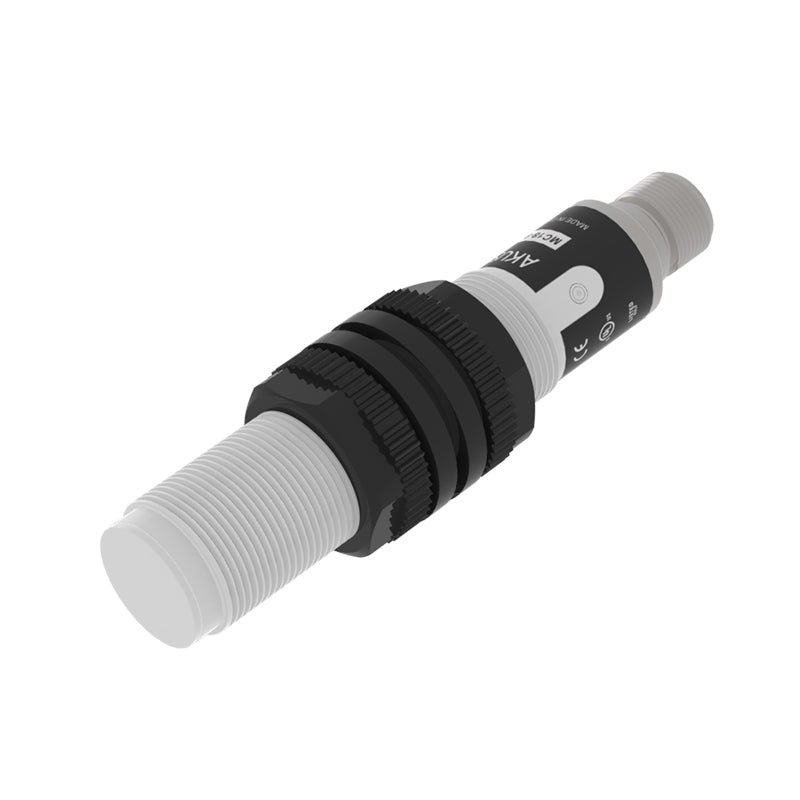

MC18-40V
MC18-40V
Regular price
€162,93 EUR
Regular price
Sale price
€162,93 EUR
Unit price
/
per
Couldn't load pickup availability
Share
| Model | MC18-40V |
| Category | Ultrasonic Sensor |
| Connection Method | M12/4 pin connector |
| Detection Method | Diffuse reflection |
| Detection Range | 50~400mm |
| Divergence Angle | ±8° |
| Enclosure Shape | Cylindrical |
| Operating Principle | Ultrasonic Detection |
| Output Mode | 0~10V |
| Resolution | 3mm |
| Response Time | 500ms |
| Accessories | Plastic nut M18x1 |
| Ambient pressure | - |
| Delay | - |
| Detection Range Adjustment | - |
| Dimensions | M18x91. 5 mm |
| Hysteresis | 0.01 |
| Indicator light | - |
| Leakage current | - |
| Load Current | ≤100mA |
| Material | PBT |
| Maximum Ripple | Plus or minus 5% |
| Maximum Tightening Torque | 50Nm |
| Mounting method | - |
| Operating Current | ≤50mA |
| Operating Voltage | 15~30VDC |
| Protection Circuit | Reverse polarity protection/short circuit (automatic reset)/ pulse overvoltage protection |
| Protect Degree | IP67 |
| Refresh rate | - |
| Repeatability | 0.005 |
| Residual Voltage | 2.2V max.(1L=100mA) |
| Switching Frequency | 10Hz |
| Temperature Compensation | Have |
| Temperature Drift | 0.05 |
| Transducer frequency | - |
| Ultrasonic frequency | - |
| Voltage Drop | ≤2.2V (100mA) |
| Weight | 0.026 kg |
| Working Temperature | -20~60℃ |
