LSPDM Safety Scanner
LSPDM Safety Scanner
Regular price
€1.499,90 EUR
Regular price
Sale price
€1.499,90 EUR
Unit price
/
per
Couldn't load pickup availability
Miniaturization

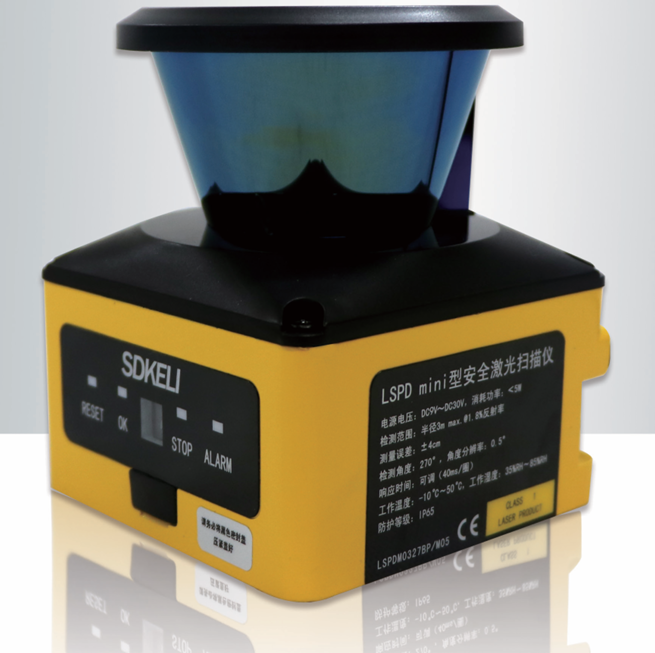

- The world's smallest functional safety scanner with dimensions of 8 cm × 8 cm × 9.5 cm.
Safety and Reliability
- Certified to EU safety standards and built to industrial-grade quality.
- Complies with IEC 61496 Type 3 and ISO 13849 PL d safety requirements.
- Features a Class 1 laser product, ensuring it is safe for human eyes.
- Includes window dirt detection: If the actual detection distance is less than the declared protection distance, the system cuts off output to maintain safety.
Easy and Fast Operation
- The protection zone consists of a protective zone and a warning zone, with a protective zone radius of 3 meters @ 1.8% reflectance.
- Zones can be configured into complex, irregular shapes based on user requirements.
- Supports up to 16 zone groups, with 3 protection zones per group.
- Operated via self-developed software that is simple and practical to use.
- The LSPD mini safety laser scanner can perform two-dimensional area detection and contour scanning with a range of 270° and a radius of 3 meters.
- It is compact, flexible, accurate, reliable, and cost-effective.
- This makes it ideal for obstacle avoidance and navigation of mobile robots.
Technical Parameters
| Category | Parameter |
|---|---|
| Safety level | Type 3 (IEC 61496), PL d (ISO 13849) |
| Optical characteristics | |
| Laser light source | Wavelength of 905nm, Class 1 laser product |
| Maximum detecting radius | 3m @ 1.8% reflectivity |
| Scanning angle range | 270° |
| Angle resolution | 0.5° |
| Measurement error | ±4cm |
| Environmental characteristics | |
| Environment temperature | Operating: -10°C ~ 55°C (No frost or fog) Storage: -40°C ~ 70°C |
| Environment humidity | Operating: 35%RH ~ 85%RH Storage: 35%RH ~ 95%RH |
| Anti-light interference | 15000 Lux |
| Vibration resistance | Frequency: 10Hz ~ 55Hz, Amplitude: 0.35 ± 0.05 mm Number of scans: three axes, 20 times per axis |
| Shock resistance | Acceleration: 10g, Pulse duration: 16ms Number of collisions: three axes, 1000 ± 10 times per axis |
| Implementation standards |
2006/42/EC (Machinery Safety Directive), 2004/108/EC (EMC Directive), IEC 61496-1, IEC 61496-3, ISO 13849-1, GB/T19436.1, GB19436.3, GB4208 (IP65), EN60825-1 (Class 1 laser product) |
| Zone Group Switch | 4 sets of external input signals (Z1, Z2, Z3, Z4) to realize switching of 16 zone groups |
| Protection level | IP65 |
| Dimension | 8cm × 8cm × 9.5cm |
| Electrical characteristics | |
| Power supply | DC 9V ~ DC 30V |
| Consumption | <5W (no load at the output terminal) |
| Output | PNP |
| Response time | 40ms / adjustable |
| Power-on time | Typical value: 8s |
Share
| Model | LSPDM Safety Scanner |
| Category | Safety Lidar |
| Output Mode | PNP |
