Elvotec
KLMs Safety Lidar
KLMs Safety Lidar
Regular price
€1.828,97 EUR
Regular price
Sale price
€1.828,97 EUR
Unit price
/
per
Couldn't load pickup availability
Product Description

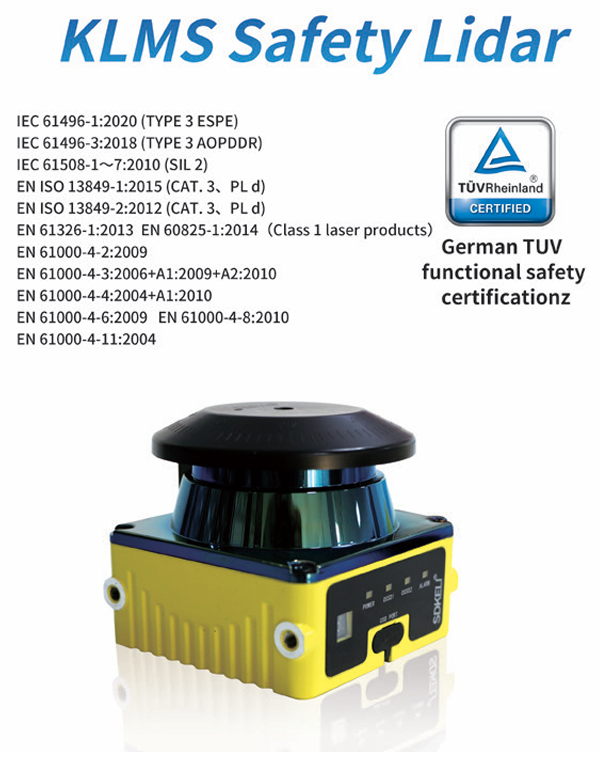

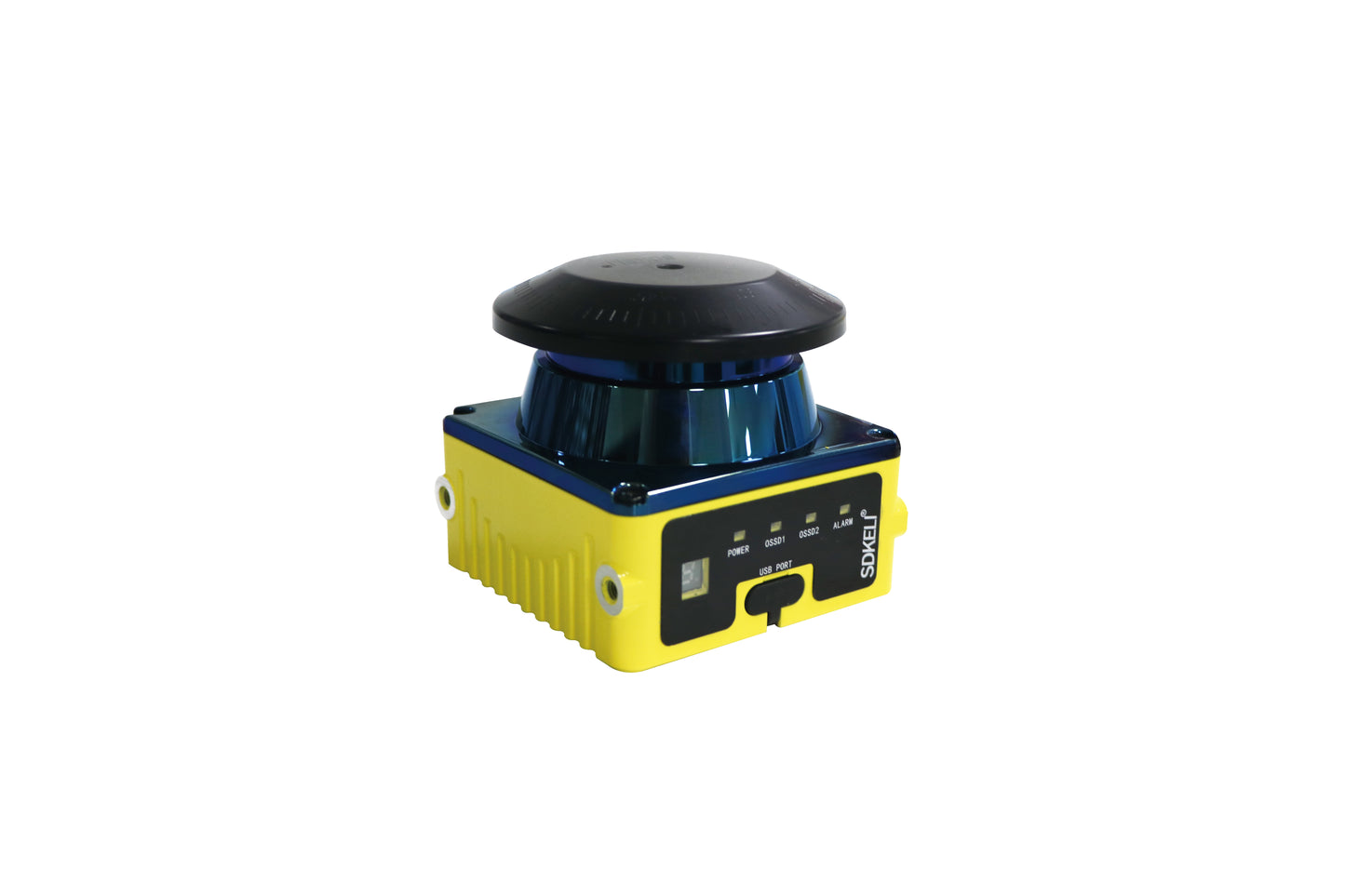

KLM's safety LiDAR is an electrical sensitive protective equipment (ESPE).
It is designed based on the principle of pulsed laser ranging. The system can perform two-dimensional area protection with a scanning angle of 276° and a radius of 4m (at 18% reflectivity) through rotational scanning. Both functional safety output and measurement output are supported, meeting users' needs for safety obstacle avoidance and precise measurement at the same time.
Features
- High safety certification: SIL2, PL d, Type 3, TÜV Rheinland certified, compliant with IEC 61508, ISO 13849, and IEC 61496 standards.
- Consistent measurement accuracy: Performance is not affected by changes in target reflectivity, providing stable and consistent results in various application scenarios.
- Flexible protection zones: Supports static and dynamic input transformation with up to 64 configurable protection zones, adaptable to complex and variable application scenarios.
- Stepped window design: The unique stepped structure minimizes dirt accumulation, reducing maintenance frequency and extending maintenance cycles.
- Advanced work pattern: The system allows the radar to operate in PA mode (Protection Area + Alarm 1 + Alarm 2) or PP mode (Protection Zone 1 + Protection Zone 2), supporting different protection needs.
Work Pattern
Through upper computer software, the radar's detection area can be configured in PA or PP modes to meet diverse protection needs:
- In PA or PP mode, up to 64 area groups with different shapes can be configured.
- Users can assign area groups to specific monitoring cases and define conditions for activating the protection of each area group.
- Switching between region groups is supported using static control input, dynamic control input, or contour recognition input, either individually or in combination.
Technical Parameters
| Category | Parameter |
|---|---|
| Safety Level Parameters | |
| Type | Type 3 (IEC 61496) |
| Safety Integrity Level | SIL 2 (IEC 61508) |
| Category | Cat. 3 (ISO 13849-1) |
| Performance Level | PL d (ISO 13849-1) |
| Average Hourly Hazardous Failure Rate | 1.67 × 10⁻⁸ |
| Safety State in Case of Failure | At least one OSSD is in the OFF state |
| Detection Parameters | |
| Laser Light Source | Wavelength: 905 nm, Class 1 laser products |
| Scanning Angle Range | 276° (–48°～228°) |
| Maximum Protection Radius | 4m @ 1.8% reflectivity |
| Maximum Detection Distance | 50m @ 90% reflectivity |
| Angle Resolution | 0.12° |
| Scan Cycle | 40 ms |
| Multiple Sampling | 2~16 |
| Response Time | Default value: 100 ms (configurable) |
| Minimum Detected Object Size | 70 mm @ maximum radius of the protected area |
| Tolerance Zone (TZ) | 65 mm |
| Additional Extension Distance (ZR) | 350 mm (measurement error caused by reflection) |
| Electrical Parameters and Interfaces | |
| Working Voltage | DC 24V ± 20% |
| Consumption | < 10W (no load at output end) |
| Safety Output (OSSD1) | PNP × 2 (ON state: max Iout = 200 mA, Vout ≥ Vcc - 2V, OFF state: Iout < 1 mA, Vout < 2V) |
| Overcurrent protection, capacitive load ≤ 100 nF | |
| Protection is ON when no objects are present, OFF when objects or faults are detected | |
| Input Interfaces | 8 total, configurable as static or dynamic inputs |
| Static Input: High level 24V (11V-28V), Low level 0V (<2V), sampling time: 10 ms | |
| Dynamic Input: High level 24V (11V-28V), Low level 0V (<2V), frequency < 100 kHz | |
| Encoder Type: Dual channel, 90° phase difference | |
| Universal I/O Interface | 4 total; configurable as static inputs, alarm outputs, or OSSD2 outputs |
| Static Input: High level 24V (11V-28V), Low level 0V (<2V), sampling time: 10 ms | |
| Alarm Output: PNP (ON state: max Iout = 200 mA, Vout ≥ Vcc - 2V, OFF state: Iout < 1 mA, Vout < 2V) | |
| Allowable Cable Resistance | ≤ 4 Ω |
| Data Output Interface | Ethernet |
| Configure Interface | microUSB |
| Power-On Start Time | Typical value: 10 s |
| Mechanical Parameters | |
| Dimensions | 80 × 90 × 75 mm |
| Cable Length | ≤ 1 m |
| Environmental Parameters | |
| Ambient Temperature | Working: -10℃～50℃, Storage: -40℃～70℃, no frost or condensation |
| Ambient Humidity | Operating: 35%RH～85%RH, Storage: 35%RH～95%RH |
| Anti-Light Interference | 80000 Lux |
| Anti-Vibration | Frequency: 10Hz～55Hz, 1 octave/min, Amplitude: 0.35 mm /1g, 20 vibrations in X, Y, Z directions |
| Frequency: 5Hz～200Hz, Amplitude: 1.5 mm /0.5g, 10 vibrations in X, Y, Z directions | |
| Anti-Collision | Acceleration: 10g, Pulse Duration: 16ms, 1000 impacts in X, Y, Z directions |
| Acceleration: 5g, Pulse Duration: 16ms, 3 impacts in X, Y, Z directions | |
| Protection Level | IP65 |
