AKUSENSE

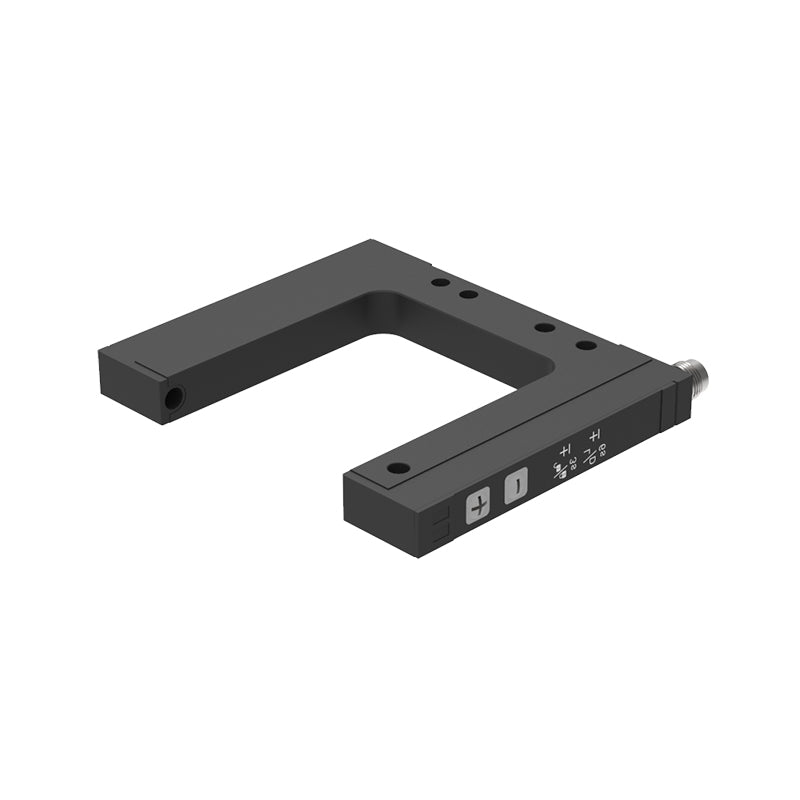

KLM06-0506NP
KLM06-0506NP
Regular price
€255,26 EUR
Regular price
Sale price
€255,26 EUR
Unit price
/
per
Couldn't load pickup availability
Share
| Model | KLM06-0506NP |
| Category | Wide Slot Sensor |
| Housing style | Shape U |
| Slot depth | 59mm |
| Slot width | 50mm |
| Connection method | M8/4-pin plug |
| Detecting object | 0.05mm |
| Dimensions | 74.0x10.0x88.5mm |
| Environmental illumination | Incandescent light ≤1000 Lux; LED light ≤1000 Lux; Sunlight ≤10000 Lux |
| Hysteresis | <0.01mm |
| Indicator light | Output function: Red LED, operational status: Green LED |
| Insulation resistance | ≥50MΩ（500VDC） |
| Light source | Red laser, 670nm (modulated) |
| Load current | ≤100mA（24VDC） |
| Material | Aluminum, glass |
| Operating humidity | 35~85%RH(no condensation) |
| Operating temperature | -20~50℃(no freezing) |
| Operating voltage | 12~24V DC±10% |
| Optical working principle | Through-beam |
| Output mode | NPN and PNP collector open |
| Power consumption | ≤40mA |
| Protection circuit | Reverse polarity protection/short-circuit protection |
| Protection rating | IP65 |
| Repeat accuracy | <0.01mm |
| Residual voltage | ≤2.0V（100mA） |
| Response time | 0.1ms |
| Storage humidity | 35~95%RH(no condensation) |
| Storage temperature | -30~80℃(no freezing) |
| Switching frequency | 20kHz |
| Switching mode | L.on (light-on action)/D.on (dark-on action) switchable |
| Vibration resistance | 10~55Hz, amplitude 1.5mm, 2 hours each in X/Y/Z axes |
| Weight | 0.058kg |
| Withstand voltage | 1000VAC (50/60Hz) |
| Working principle | Photoelectric sensor |
