AKUSENSE

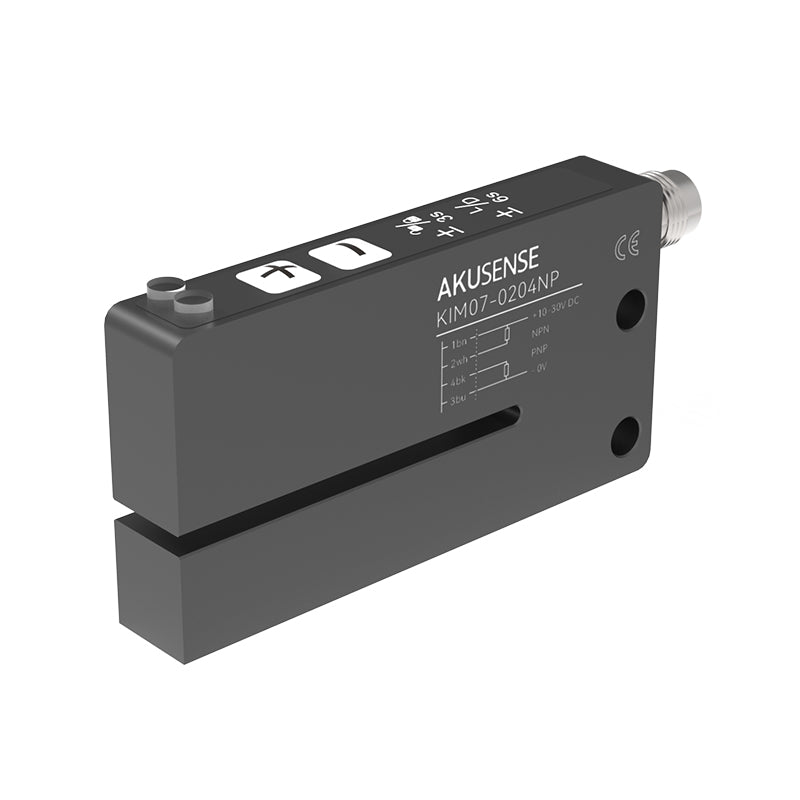

KIM07-0204NP
KIM07-0204NP
Regular price
€35,30 EUR
Regular price
Sale price
€35,30 EUR
Unit price
/
per
Couldn't load pickup availability
Share
| Model | KIM07-0204NP |
| Category | Label Detection Sensor |
| Housing style | Shape U |
| Slot depth | 42mm |
| Slot width | 2mm |
| Connection method | M8/4-pin plug |
| Detecting object | 2mm (minimum label gap) |
| Dimensions | 32.5x10.0x61.0mm |
| Environmental illumination | Sunlight ≤10000 Lux |
| Hysteresis | ≤0.02mm |
| Indicator light | Output function: Red LED, operational status: Green LED |
| Insulation resistance | ≥50MΩ(500VDC) |
| Light source | Infrared LED, 940nm |
| Load current | ≤100mA(24VDC) |
| Material | Aluminum |
| Operating humidity | 35%RH~85%RH |
| Operating temperature | -10℃~+55℃ |
| Operating voltage | 12~24V DC±10% |
| Optical working principle | Through-beam |
| Output mode | NPN and PNP collector open |
| Power consumption | ≤40mA |
| Protection circuit | Reverse polarity protection/short-circuit protection |
| Protection rating | IP65 |
| Repeat accuracy | ±0.02mm |
| Residual voltage | ≤2V |
| Response time | 0.02ms |
| Storage humidity | 35%RH~85%RH |
| Storage temperature | -30℃~+70℃ |
| Switching frequency | 100kHz |
| Switching mode | L.on (light-on action)/D.on (dark-on action) switchable |
| Vibration resistance | 10~55Hz, amplitude 1.5mm, 2 hours each in X/Y/Z axes |
| Weight | 0.035kg |
| Withstand voltage | 1000VAC (50/60Hz) |
| Working principle | Photoelectric sensor |
