AKUSENSE

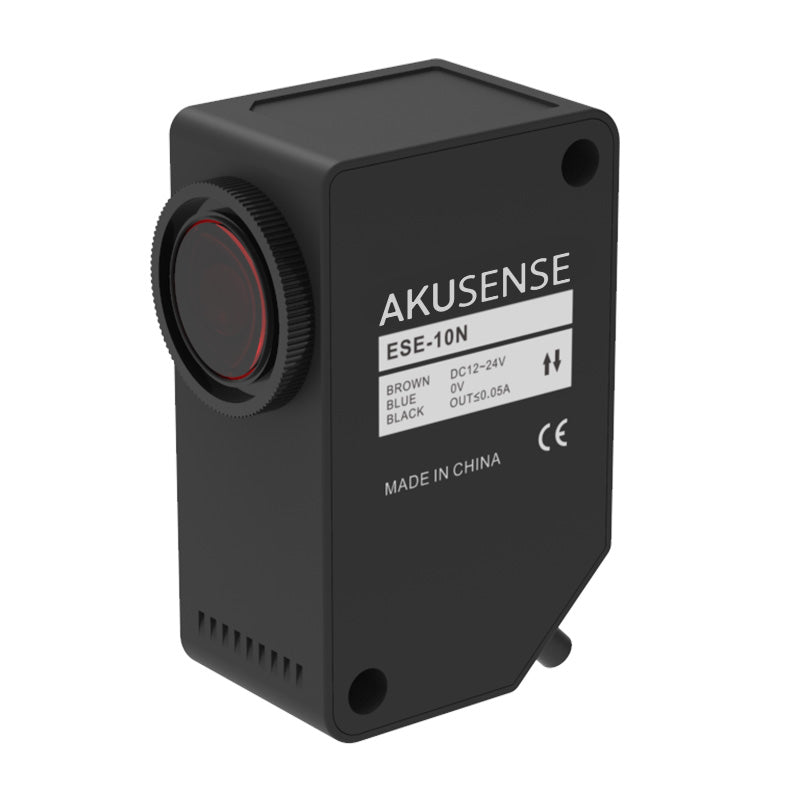

ESE-10N
ESE-10N
Regular price
€68,28 EUR
Regular price
Sale price
€68,28 EUR
Unit price
/
per
Couldn't load pickup availability
Share
| Model | ESE-10N |
| Category | Photoelectric Sensor |
| Detection Range | 10mm(±3mm) |
| Housing Style | Square |
| Light Source | Red/blue/green composite LED (wavelength 625nm/470nm/525nm) |
| Optical Working Principle | Diffuse Reflection |
| Output Mode | NPN Open collector |
| Sensor Type | Color Mark Detection Sensor |
| Spot size | 1*6mm(set distance: 10mm) |
| Accessories | Mounting screws |
| Ambient Light | Incandescent lamp ≤3000 Lux; Sunlight exposure ≤ 10,000 Lux |
| Connection Method | 2M/ 3-core cable 4mm diameter |
| Current consumed | ≤35mA(24V DC) |
| Detected Object | - |
| Dimensions | 57*35*24mm |
| Hysteresis | 0.05 |
| Indicator Light | Output status - orange |
| Insulation Resistance | ≥20MΩ (250VDC) between power terminal and housing |
| Load Current | < 50mA |
| Material | PC |
| Maximum Tightening Torque | 0.5 Nm or less |
| Operating Humidity | 35 to 95%RH (no condensation) |
| Operating Temperature | -10~55℃(without freezing) |
| Operating Voltage | 12~24V DC±10% |
| Protection Circuit | Power supply reverse polarity protection/surge protection/short circuit protection |
| Protection Rating | IP67 |
| Repeatability | 5%SN |
| Residual Voltage | < 1.5V (load current < 50mA) |
| Response time | Color code mode 0.05ms, color mode 0.2ms |
| Sensitivity Adjustment | 7 sections 8-bit digital display (red: 4 bits, green: 4 bits) |
| Storage humidity | 35~85%RH (no condensation) |
| Storage temperature | -20~+70℃(without freezing) |
| Switching frequency | ≤6kHz |
| Switch mode | L.on (light entry action) /D.on (light blocking action) can be switched |
| Vibration Resistance | 10~50Hz, double amplitude 1.5mm, 2 hours in each direction X, Y and Z |
| Weight | 0.05 kg |
| Withstand Voltage | 1000VAC (50/60Hz), 1 minute between the power terminal and housing |
