AKUSENSE

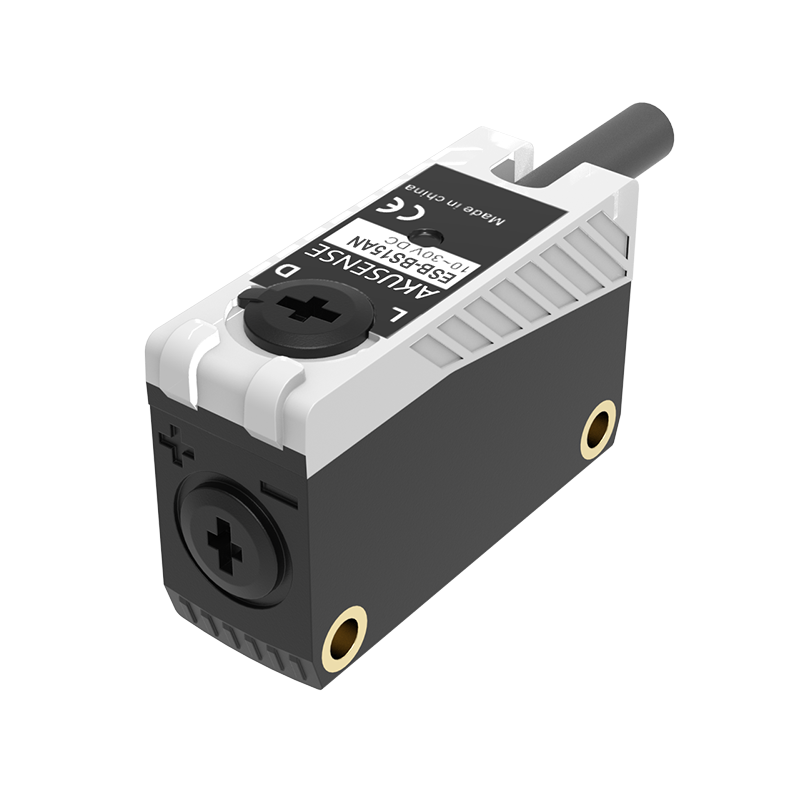

ESB-BS15AP
ESB-BS15AP
Regular price
€15,09 EUR
Regular price
Sale price
€15,09 EUR
Unit price
/
per
Couldn't load pickup availability
Share
| Model | ESB-BS15AP |
| Category | Photoelectric Sensor |
| Detection Range | 1~150mm |
| Housing Style | Square |
| Light Source | Red LED 660nm (modulated) |
| Optical Working Principle | Background suppression diffuse reflection |
| Output Mode | PNP open collector |
| Sensor Type | BGS Type (ESB Series) |
| Spot size | Phi is 2 mm / 150 m |
| Accessories | Screwdriver, bracket, screws and nuts |
| Ambient Light | Incandescent lamp ≤3000 Lux; Sunlight exposure ≤ 10,000 Lux |
| Connection Method | 2m/ 4-core cable 4mm diameter |
| Current consumed | ≤25mA |
| Detected Object | - |
| Dimensions | 31*20*11mm |
| Hysteresis | ≤5% (white matte paper) |
| Indicator Light | There are |
| Insulation Resistance | 20 m Ω |
| Load Current | ≤100mA |
| Material | PBT+ glass fiber (housing); PMMA (lens) |
| Maximum Tightening Torque | 0.5 Nm or less |
| Operating Humidity | 35~85%RH (no condensation) |
| Operating Temperature | -25℃~+55℃ |
| Operating Voltage | 10~30V DC |
| Protection Circuit | Reverse polarity protection/surge protection/short circuit protection |
| Protection Rating | IP67 |
| Repeatability | — |
| Residual Voltage | < 1.5V |
| Response time | ≤1ms |
| Sensitivity Adjustment | 6 turns potentiometer |
| Storage humidity | 35 to 95%RH (no condensation) |
| Storage temperature | -30~+70℃ |
| Switching frequency | — |
| Switch mode | L.on (light entry action) /D.on (light blocking action) can be switched |
| Vibration Resistance | 10~50Hz, 0.5mm amplitude, 2 hours in each direction X, Y and Z |
| Weight | 0.05 kg |
| Withstand Voltage | 1000VAC (50/60Hz), 1 minute between the power terminal and housing |
