AKUSENSE

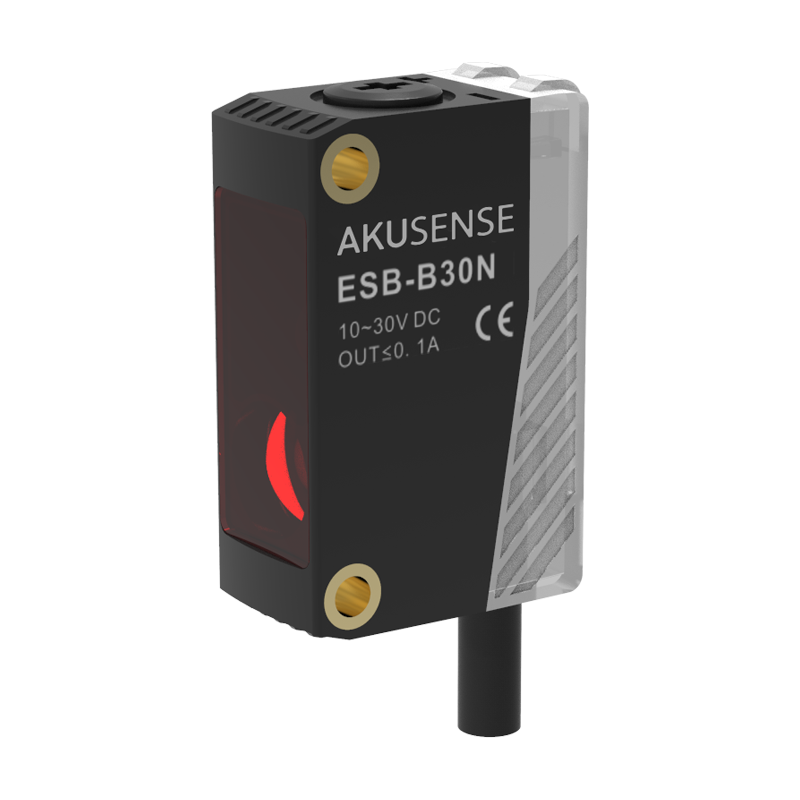

ESB-B30N
ESB-B30N
Regular price
€13,58 EUR
Regular price
Sale price
€13,58 EUR
Unit price
/
per
Couldn't load pickup availability
Share
| Model | ESB-B30N |
| Category | Photoelectric Sensor |
| Detection Range | 1~300mm |
| Housing Style | Square |
| Light Source | Red LED 623nm(modulated) |
| Optical Working Principle | Background suppression diffuse reflection |
| Output Mode | NPN Open collector |
| Sensor Type | BGS Type (ESB Series) |
| Spot size | Ø 16 mm / 300 mm |
| Accessories | Screwdriver |
| Ambient Light | Incandescent lamp ≤3000 Lux; Sunlight exposure ≤ 10,000 Lux |
| Connection Method | 2m/3 core cable |
| Current consumed | ≤25mA |
| Detected Object | - |
| Dimensions | 11.0 x31.0 x20.0 mm |
| Hysteresis | ≤5% |
| Indicator Light | Working indicator light: green; Action light: red |
| Insulation Resistance | 50 m Ω |
| Load Current | ≤100mA |
| Material | PBT+ fiberglass |
| Maximum Tightening Torque | 0.5 Nm or less |
| Operating Humidity | 35~85%RH (no condensation) |
| Operating Temperature | -25~55℃(without freezing) |
| Operating Voltage | 10~30V DC |
| Protection Circuit | Reverse polarity protection/surge protection/short circuit protection/interference light protection |
| Protection Rating | IP67 |
| Repeatability | ≤5% |
| Residual Voltage | ≤1.5V (100mA) |
| Response time | ≤1.5ms |
| Sensitivity Adjustment | 6 turns potentiometer |
| Storage humidity | 35 to 95%RH (no condensation) |
| Storage temperature | -30℃~+70℃(without freezing) |
| Switching frequency | ≤500Hz |
| Switch mode | L.on (light entry action) /D.on (light blocking action) can be switched |
| Vibration Resistance | 10 to 55Hz, 1.5mm amplitude, 2 hours in each of the X, Y and Z directions |
| Weight | 0.045 kg |
| Withstand Voltage | ≤0.1mA (1000V AC) |
