AKUSENSE

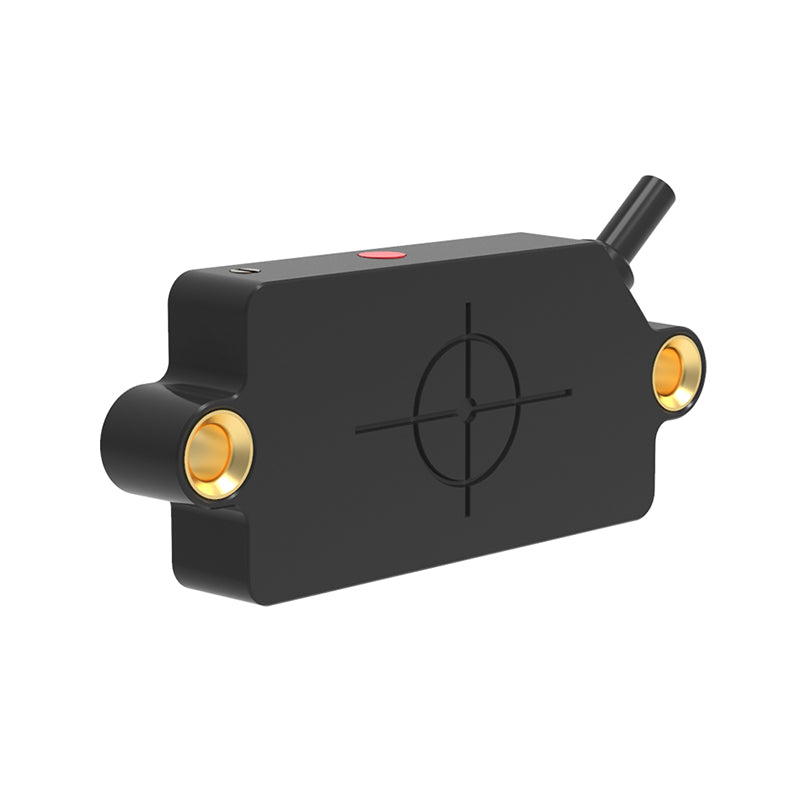

CQ07-08PC
CQ07-08PC
Regular price
€20,37 EUR
Regular price
Sale price
€20,37 EUR
Unit price
/
per
Couldn't load pickup availability
Share
| Model | CQ07-08PC |
| Category | Capacitive Sensors |
| Housing | Flat blocks |
| Installation type | Flush |
| Output Mode | PNP |
| Sensing distance | 8mm |
| Sensor Type | Flat Type |
| Switching output | Normally closed |
| Thread size | — |
| Accessories | - |
| Circuit Protection | Reverse polarity protection/short circuit protection/surge protection |
| Connection type | 2m/3 wire cable |
| Current consumption | ≤10mA |
| Detected objects | Metal, liquid, powder, wood, paper, plastic and other materials |
| Detects pipe wall thickness | - |
| Detect pipe size | — |
| Dielectric strength | 1000VAC (50/60Hz), 1 minute between the power terminal and housing |
| Dimension | 48.8x20.0x7.0mm |
| Enclosure rating | IP66 |
| External input | None |
| Hysteresis | 0.1 |
| Indicator | Operating status: LED |
| Insulation resistance | ≥50MΩ (500VDC) between power terminal and housing |
| Leakage current | < 0.01 mA |
| Load current | ≤150mA |
| Material | Plastic |
| Operating Humidity | 35 to 85% relative humidity |
| Operating Temperature | -10~55℃ |
| Operating Voltage | 10~30V DC |
| Repeatability | 0.01 |
| Residual Voltage | 1.5 V or less |
| Sensing range adjustment | Available |
| Sensing surface material | - |
| Sensor Type | Flat Type |
| Switching frequency | 0.035 kHz |
| Vibration resistance | 10 to 55Hz, amplitude 1.5mm, X/Y/Z axis, 2 hours each |
| Weight | 0.05kg |
