AKUSENSE

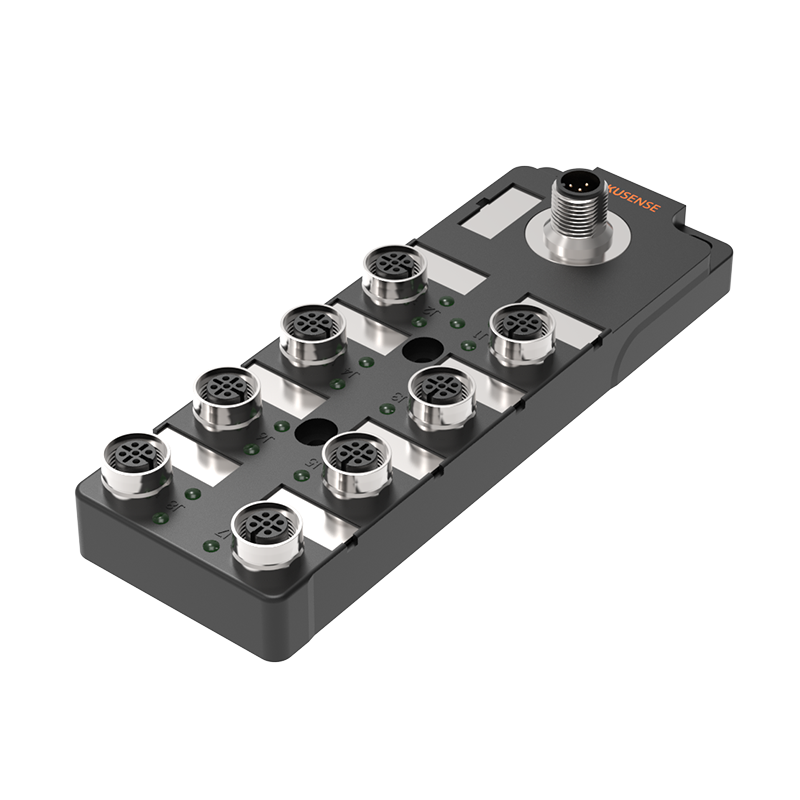

CIO100-M12-DIO16N
CIO100-M12-DIO16N
Regular price
€126,41 EUR
Regular price
Sale price
€126,41 EUR
Unit price
/
per
Couldn't load pickup availability
Share
| Model | CIO100-M12-DIO16N |
| Category | IO-Link Module |
| Alarm function | - |
| Application environment | - |
| Auxiliary Power Supply Voltage ua | - |
| Certification | - |
| Characteristics | - |
| ClassB Auxiliary Current | - |
| ClassB Auxiliary Voltage | - |
| Class A | - |
| Class B | - |
| Communication port fastening torque | - |
| Communication protocol | - |
| Communication rate | - |
| Connection method | - |
| Electromagnetic compatibility (EMC) | - |
| Enter quantity | - |
| External dimensions | — |
| Free fall testing | - |
| How the master station is connected | - |
| I/O port fastening torque | — |
| Indicator light -BF | - |
| Indicator light -ERR | - |
| Indicator light -I/O | Green: The channel signal is normal. Red: The port is faulty |
| Indicator light -IO-LINK | - |
| Indicator light -LINK | - |
| Indicator light -MS | - |
| Indicator light -NS | - |
| Indicator Light -PWR | Green: The power supply to the module is normal; Yellow: the auxiliary power supply is not connected |
| Indicator light -RUN | Green: The communication is down. Blinking green: The communication is normal. Red: The communication is interrupted |
| Indicator light -SF | - |
| Input current | - |
| Input polarity | NPN |
| Installation hole specifications | — |
| IO-Link | Class A |
| IO-Link handles data length | 2 input bytes; 2 output bytes |
| IO-link version | - |
| Master Station - Slave station communication distance | - |
| Maximum Load Current (Actuator) | 500 mA |
| Maximum load current (sensor) | 200 mA |
| Minimum cycle | 3 ms |
| Minimum cycle time | - |
| Number of inputs, outputs | 16 way adaptive |
| Number of IO-Link ports | 1 x equipment |
| Number of main station ports | - |
| Number of outputs | - |
| Operating atmospheric pressure | — |
| Operating humidity | — |
| Operating temperature | — |
| Output current | - |
| Output port location | - |
| Physicallayer | - |
| Port Current L+ | - |
| Port Protection | - |
| Port Voltage L+ | - |
| Power reverse protection | - |
| Power supply connection method | - |
| Ptotect degree | - |
| Rated operating voltage | 18~30V DC |
| Shell color | - |
| Shell material | - |
| Shock testing | - |
| Signal "0" voltage | - |
| Signal "1" voltage | - |
| SSystem power supply voltage us | - |
| Static Operating Current Ic | - |
| Storage/transport atmospheric pressure | — |
| Storage/transport humidity | — |
| Storage/transport temperature | — |
| Total Current Ia | - |
| Total Current Is | - |
| Total Current UI | < 1.6A |
| Total Current UO | < 2.5A |
| Transmission speed | - |
| Vibration testing | - |
| Weight | — |
| Master - Master communication distance | - |
| Power port tightening torque | - |
