AKUSENSE

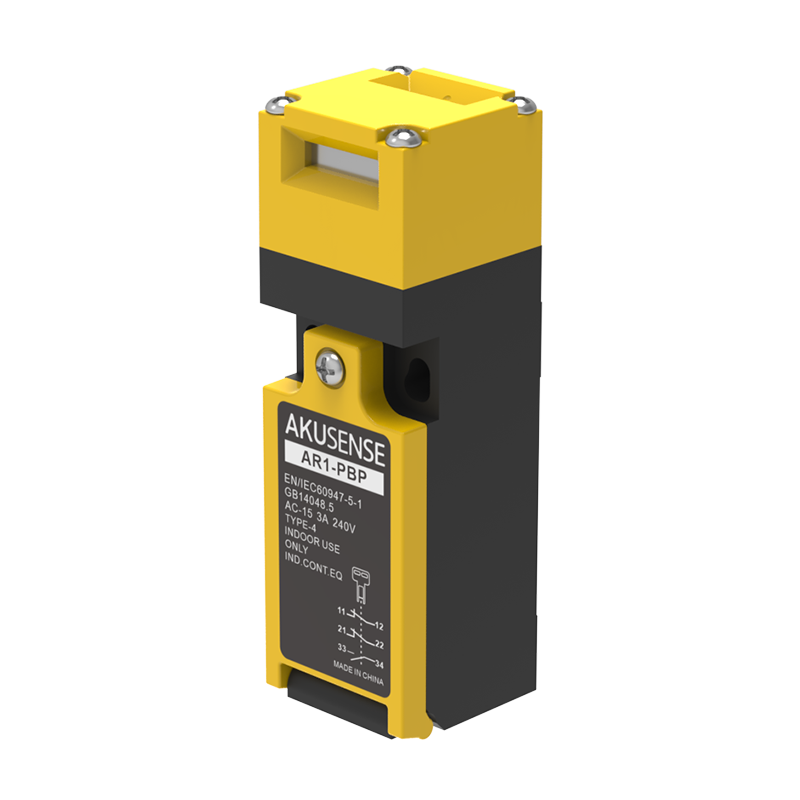

AR1 Series
AR1 Series
Regular price
€24,99 EUR
Regular price
Sale price
€24,99 EUR
Unit price
/
per
Couldn't load pickup availability
Share
| Model | AR1 Series |
| Category | Safety door lock |
| Forced break force | Standard type: min 60N; Strong tension type: min. 80N |
| Frequency of operation allowed | Max. 20 operations/min |
| Indicator light | Green, orange optional |
| Locking force | - |
| Working principle | Electromechanical type |
| Condition short circuit Current | 100A |
| Connection type | P: Pg13.5 (terminal type) M: M20 (terminal type) 2M: standard wire extraction type (2m) 2ME: bending wire extraction type (2m) |
| Contact resistance | Under 25mΩ |
| Contact spacing | 2x2mm or more |
| Force break line pre-stroke | More than 10mm |
| Housing | Square |
| Impact Resistance: Durability | 1000m/s² |
| Impact Resistance: misaction | 300m/s² |
| Insulation resistance | Less than 100mΩ (under 500VDC) |
| Level of protection against electric shock | Class II (double insulation) |
| Life: Electrical | More than 150,000 times |
| Life: Mechanical | More than 1 million times |
| Material | PA66 flame retardant |
| Pollution level | 3 (EN60947-5-1) |
| Protection level | IP67 |
| Pulse withstand voltage | 2.5 KV |
| Rated insulation voltage | 300V |
| Rated operating current | 3A/2A |
| Rated operating voltage | 240V/24V |
| Short Circuit protection | 10A,250V requires quick-break type fuse |
| Size | 29.84x30.1x96mm |
| Speed of operation | 0.1m~0.5m/s |
| Switching principle | Slow-acting switching element |
| Type of use | AC-15/DC-13 |
| Vibration resistance | 10 to 55Hz double amplitude 1.5mm |
| Weight | About 96.5g |
| Working environment humidity | 85% RH |
| Working environment temperature | -10℃ ~ + 70℃ no icing |
