AKUSENSE

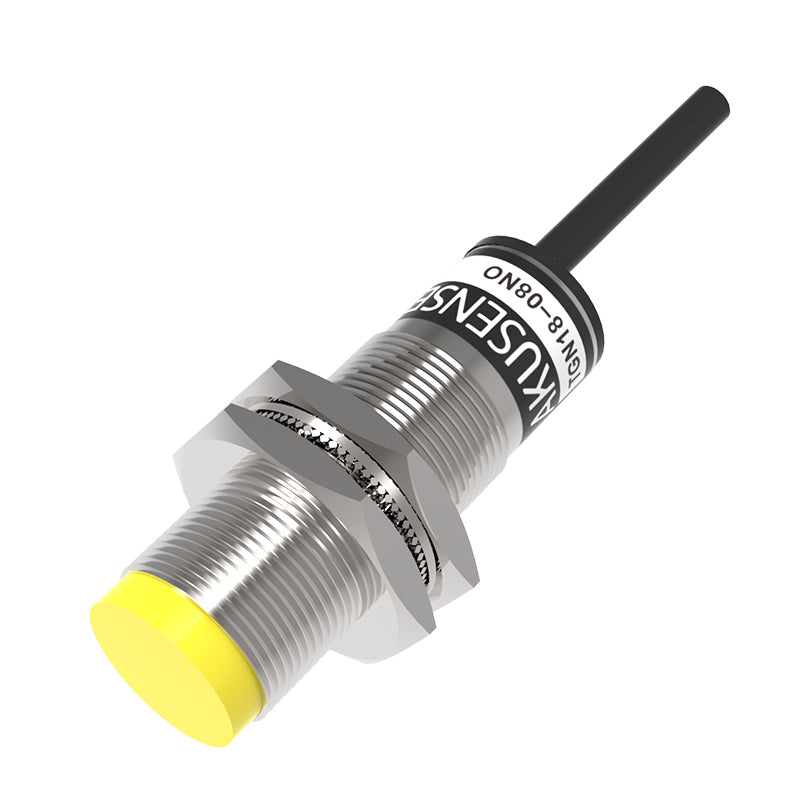

TGN18-08NO
TGN18-08NO
Normál ár
€30,55 EUR
Normál ár
Akciós ár
€30,55 EUR
Egységár
/
/
Nem sikerült betölteni az átvehetőségi adatokat
Share
| Model | TGN18-08NO |
| Category | Inductive Sensors |
| Housing | Cylindrical |
| Installation type | non-flush |
| Output Mode | NPN |
| Sensing distance | 8mm |
| Sensor Type | Temperature Resistance Type |
| Switching output | Normally Open |
| Thread size | M18 |
| Accessories | Nut M18x1.0 |
| Circuit Protection | Reverse polarity protection/surge protection |
| Connection type | 2m/3 wire cable |
| Current consumption | ≤15mA |
| Detected objects | Metal sensor |
| Detects pipe wall thickness | - |
| Detect pipe size | — |
| Dielectric strength | 1000VAC (50/60Hz), 1 minute between the power terminal and housing |
| Dimension | M18x52.5mm |
| Enclosure rating | IP67 |
| External input | None |
| Hysteresis | 1 ~ 20% |
| Indicator | Operating status: LED |
| Insulation resistance | ≥50MΩ (500VDC) between power terminal and housing |
| Leakage current | < 0.01 mA |
| Load current | 100mA |
| Material | Nickel-copper alloy |
| Operating Humidity | 35~95%RH |
| Operating Temperature | -25~+120℃ |
| Operating Voltage | 10~30V DC |
| Repeatability | 0.05 |
| Residual Voltage | 2.5 V or less |
| Sensing range adjustment | None |
| Sensing surface material | - |
| Sensor Type | Temperature Resistance Type |
| Switching frequency | 0.8 kHz |
| Vibration resistance | 10 to 55Hz, amplitude 1.5mm, X/Y/Z axis, 2 hours each |
| Weight | 0.08kg |
