AKUSENSE

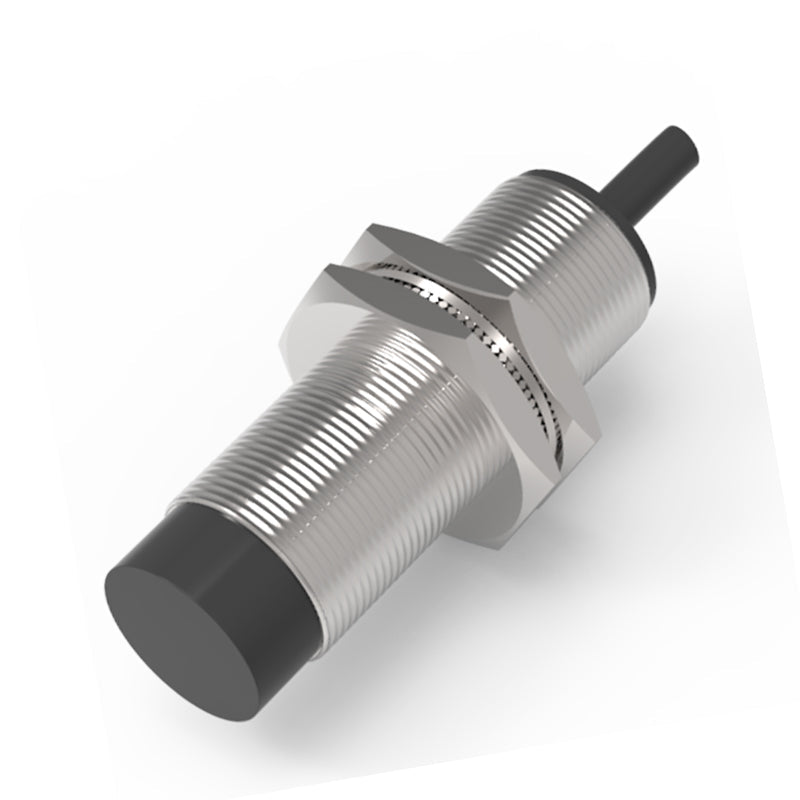

TAN18-07PA
TAN18-07PA
Normál ár
€21,82 EUR
Normál ár
Akciós ár
€21,82 EUR
Egységár
/
/
Nem sikerült betölteni az átvehetőségi adatokat
Share
| Model | TAN18-07PA |
| Category | Inductive Sensors |
| Housing | Cylindrical |
| Installation type | Flush |
| Output Mode | PNP-Analog |
| Sensing distance | 7mm |
| Sensor Type | Analog Output Type |
| Switching output | - |
| Thread size | M18 |
| Accessories | Nut M18x1.0 |
| Circuit Protection | Reverse polarity protection |
| Connection type | 2m/3 wire cable |
| Current consumption | ≤15mA |
| Detected objects | Metal sensor |
| Detects pipe wall thickness | - |
| Detect pipe size | — |
| Dielectric strength | 1000VAC (50/60Hz), 1 minute between the power terminal and housing |
| Dimension | M18x54.0mm |
| Enclosure rating | IP67 |
| External input | None |
| Hysteresis | 0.2 |
| Indicator | Action indicator: Yellow LED |
| Insulation resistance | ≥50MΩ (500VDC) between power terminal and housing |
| Leakage current | - |
| Load current | - |
| Material | Nickel-copper alloy +PBT |
| Operating Humidity | 35~85% |
| Operating Temperature | -25~75℃ |
| Operating Voltage | 18~30V DC |
| Repeatability | 0.02 |
| Residual Voltage | - |
| Sensing range adjustment | Available |
| Sensing surface material | PBT |
| Sensor Type | Analog Output Type |
| Switching frequency | 0.1 kHz |
| Vibration resistance | 10 to 55Hz, amplitude 1.5mm, X/Y/Z axis, 2 hours each |
| Weight | 0.08kg |
