AKUSENSE

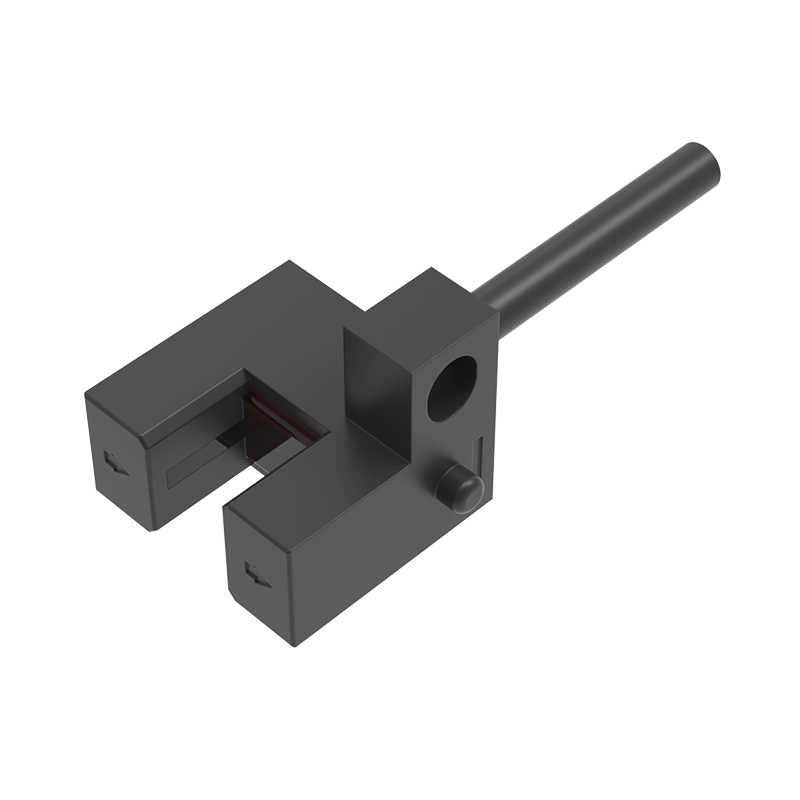

SF-202NA-W
SF-202NA-W
Normál ár
€4,36 EUR
Normál ár
Akciós ár
€4,36 EUR
Egységár
/
/
Nem sikerült betölteni az átvehetőségi adatokat
Share
| Model | SF-202NA-W |
| Category | Small Slot Sensor |
| Housing style | Shape F |
| Slot depth | 5.9mm |
| Slot width | 5.0mm |
| Connection method | 2m/4-core cable |
| Detecting object | 1.2x1.8mm |
| Dimensions | 15.5x14.7x12.3mm |
| Environmental illumination | Incandescent light ≤1000 Lux; LED light ≤1000 Lux; Sunlight ≤10000 Lux |
| Hysteresis | <0.2mm |
| Indicator light | Red LED |
| Insulation resistance | ≥20MΩ（250VDC） |
| Light source | Infrared LED, 940nm |
| Load current | ≤100mA（24VDC） |
| Material | ABS |
| Operating humidity | 5~85%RH(no condensation) |
| Operating temperature | -25~55℃(no freezing) |
| Operating voltage | 5~24V DC |
| Optical working principle | Through-beam |
| Output mode | NPN collector open |
| Power consumption | ≤16mA |
| Protection circuit | Reverse polarity protection/short-circuit protection/surge protection |
| Protection rating | IP50 |
| Repeat accuracy | <0.03mm |
| Residual voltage | Below 1V (when load current is 50mA) |
| Response time | 0.33ms |
| Storage humidity | 5~95%RH(no condensation) |
| Storage temperature | -30~80℃(no freezing) |
| Switching frequency | 6.06kHz |
| Switching mode | L.on (light-on action)/D.on (dark-on action) switchable |
| Vibration resistance | 10~55Hz, amplitude 1.5mm, 2 hours each in X/Y/Z axes |
| Weight | 0.023kg |
| Withstand voltage | 1000VAC (50/60Hz) |
| Working principle | Photoelectric sensor |
