AKUSENSE

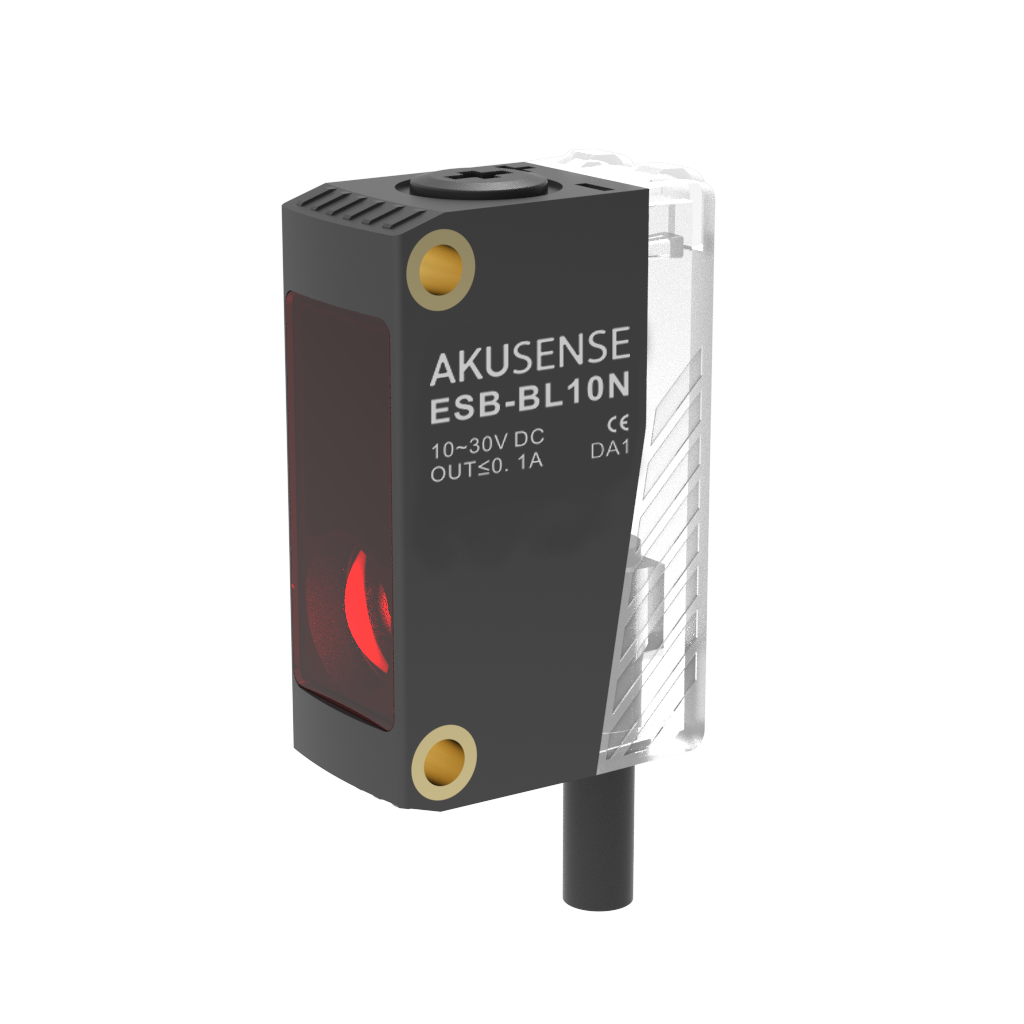

ESB-BL10N
ESB-BL10N
Normál ár
€15,09 EUR
Normál ár
Akciós ár
€15,09 EUR
Egységár
/
/
Nem sikerült betölteni az átvehetőségi adatokat
Share
| Model | ESB-BL10N |
| Category | Photoelectric Sensor |
| Detection Range | 1~100mm |
| Housing Style | Square |
| Light Source | Red light LED |
| Optical Working Principle | Background suppression diffuse reflection |
| Output Mode | NPN Open collector |
| Sensor Type | BGS Type (ESB Series) |
| Spot size | 65 x0. 5 mm / 100 mm |
| Accessories | Screwdriver |
| Ambient Light | Incandescent lamp ≤5000 Lux; Sunlight exposure ≤20000 Lux; LED lights ≤2000 Lux |
| Connection Method | 2m/ 4-core cable |
| Current consumed | ≤20mA |
| Detected Object | 5mm(at 50mm) |
| Dimensions | 11.0 x20.0 x31.0 mm |
| Hysteresis | — |
| Indicator Light | Output indicator: orange; Light source indicator: green |
| Insulation Resistance | ≥20MΩ(250V DC) |
| Load Current | 100mA |
| Material | Case: with glass fiber ABS, lens: PMMA |
| Maximum Tightening Torque | 0.5 Nm or less |
| Operating Humidity | 35~85%RH (no condensation) |
| Operating Temperature | -30℃~+70℃,without freezing |
| Operating Voltage | 10~30V DC |
| Protection Circuit | Reverse polarity protection/surge protection/short circuit protection/interference light protection |
| Protection Rating | IP66 |
| Repeatability | ≤5% |
| Residual Voltage | < 1V |
| Response time | ≤0.3ms |
| Sensitivity Adjustment | 4-turn potentiometer |
| Storage humidity | 35~95%RH |
| Storage temperature | -30℃~+70℃(without freezing) |
| Switching frequency | ≤2000Hz |
| Switch mode | L.on (light entry action) /D.on (light blocking action) can be switched |
| Vibration Resistance | 10~50Hz, 1.5mm amplitude, 2 hours in each of the X, Y and Z directions |
| Weight | 0.044 kg |
| Withstand Voltage | ≤0.1mA (1000V AC) |
