AKUSENSE

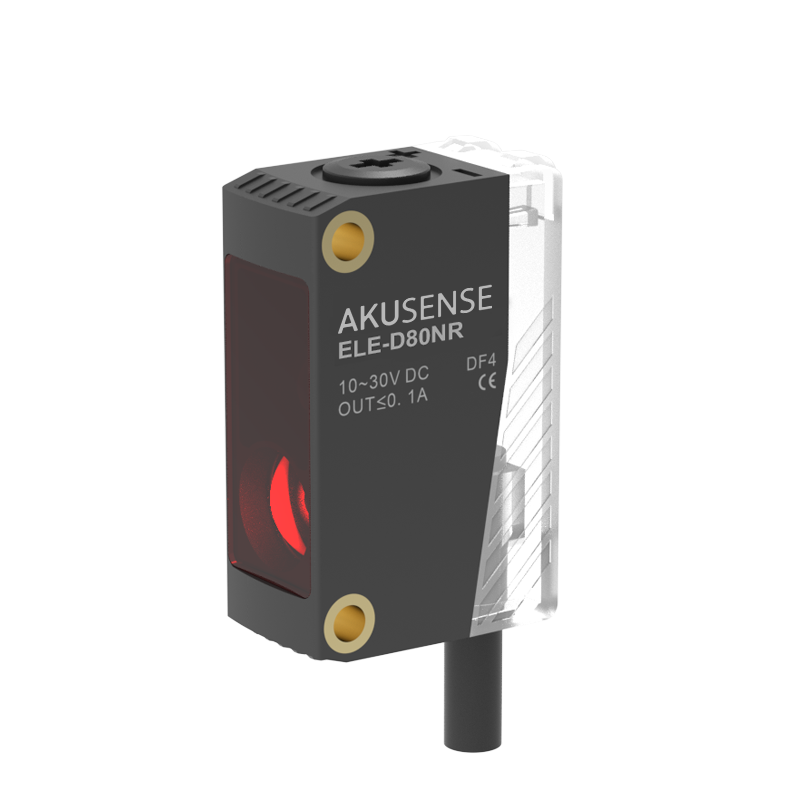

ELE-D80NR
ELE-D80NR
Normál ár
€0,00 EUR
Normál ár
Akciós ár
€0,00 EUR
Egységár
/
/
Nem sikerült betölteni az átvehetőségi adatokat
Share
| Model | ELE-D80NR |
| Category | Laser Sensors |
| Detected Object | Ø 0.5 mm |
| Detection Range | 20~800mm |
| Housing Style | Square |
| Optical Working Principle | Background suppressed diffuse reflection |
| Output Mode | NPN Open collector |
| Sensor Type | BGS Type |
| Spot size | - |
| Accessories | Bracket, screws |
| Ambient Light | Incandescent lamp ≤1000 Lux; LED lamp ≤600 Lux; Sunlight ≤20000Lux |
| Connection Method | 2m/ 4-core cable |
| Current Consumption | ≤20mA |
| Dimensions | 11.0 x31.0 x20.0 mm |
| Hysteresis | ≤5% |
| Indicator Light | Work indicator light: green; Output indicator: red |
| Insulation Resistance | ≥20MΩ (250V DC) |
| Light Source | Red laser, 650nm (modulated) Class 2 |
| Load Current | 100mA |
| Material | PBT+ glass fiber (shell); PMMA(lens) |
| Maximum Tightening Torque | 0.5 Nm or less |
| Operating Humidity | 35~85%RH (no condensation) |
| Operating Temperature | -10~55℃(without freezing) |
| Operating Voltage | 10~30V DC±10% |
| Protection Circuit | Reverse connection protection/short circuit protection |
| Protection Rating | IP65 |
| Repeatability | — |
| Residual Voltage | < 1.5 V |
| Response time | 1.2ms |
| Sensitivity Adjustment | 6 turns potentiometer |
| Sensor Type | BGS Type |
| Storage Humidity | 35~95%RH(no condensation) |
| Storage Temperature | -30~70℃(no freezing) |
| Switching Frequency | - |
| Switch mode | L.on (light entry action) /D.on (light blocking action) can be switched |
| Vibration Resistance | 10~55Hz, amplitude 1.5mm, X, Y, Z axis, 2 hours each |
| Weight | Approx. 68g |
| Withstand Voltage | 1000VAC (50/60Hz) |
