AKUSENSE

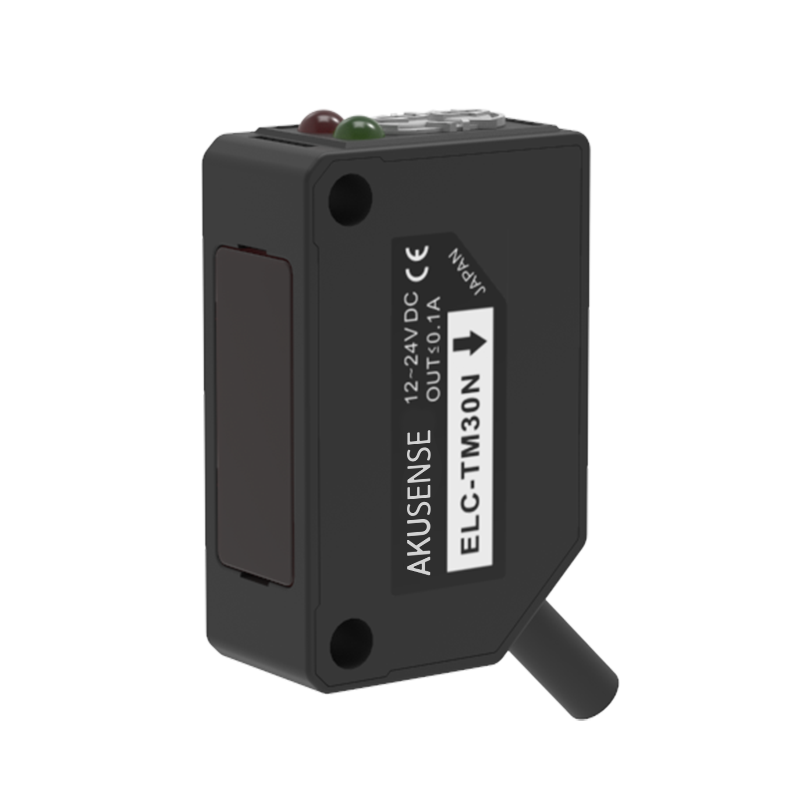

ELC-TM30N
ELC-TM30N
Normál ár
€0,00 EUR
Normál ár
Akciós ár
€0,00 EUR
Egységár
/
/
Nem sikerült betölteni az átvehetőségi adatokat
Share
| Model | ELC-TM30N |
| Category | Laser Sensors |
| Detected Object | Ø 2 mm |
| Detection Range | 1~30000mm |
| Housing Style | Square |
| Optical Working Principle | Through-beam |
| Output Mode | NPN Open collector |
| Sensor Type | Long Distance Type |
| Spot size | Ø 30.0 mm / 30 m |
| Accessories | Bracket, screws |
| Ambient Light | Incandescent lamp ≤3000 Lux; LED lamp ≤1000 Lux; Sunlight -/≤ 10,000 Lux |
| Connection Method | 2m/3 core cable |
| Current Consumption | Transmitting end ≤30mA, receiving end ≤30mA |
| Dimensions | 11.0 x31.0 x20.0 mm |
| Hysteresis | — |
| Indicator Light | Output function: yellow LED, running status: green LED |
| Insulation Resistance | ≥50MΩ (500VDC) between power terminal and housing |
| Light Source | Red Laser 650nm, Class 1 |
| Load Current | ≤100mA (24VDC) |
| Material | - |
| Maximum Tightening Torque | - |
| Operating Humidity | 35~85%RH (no condensation) |
| Operating Temperature | -10~50℃(without freezing) |
| Operating Voltage | 12~24V DC±10% |
| Protection Circuit | Short circuit protection/reverse polarity protection |
| Protection Rating | IP67 |
| Repeatability | — |
| Residual Voltage | ≤2.0V (100mA) |
| Response time | 0.25ms |
| Sensitivity Adjustment | Single-turn potentiometer |
| Sensor Type | Long Distance Type |
| Storage Humidity | 35~95%RH(no condensation) |
| Storage Temperature | -10~70℃(no freezing) |
| Switching Frequency | 8kHz |
| Switch mode | L.on (light entry action) /D.on (light blocking action) can be switched |
| Vibration Resistance | 10~55Hz, amplitude 1.5mm, X, Y, Z axis, 2 hours each |
| Weight | 0.092 kg |
| Withstand Voltage | 1000VAC (50/60Hz), 1 minute between the power terminal and housing |
