AKUSENSE

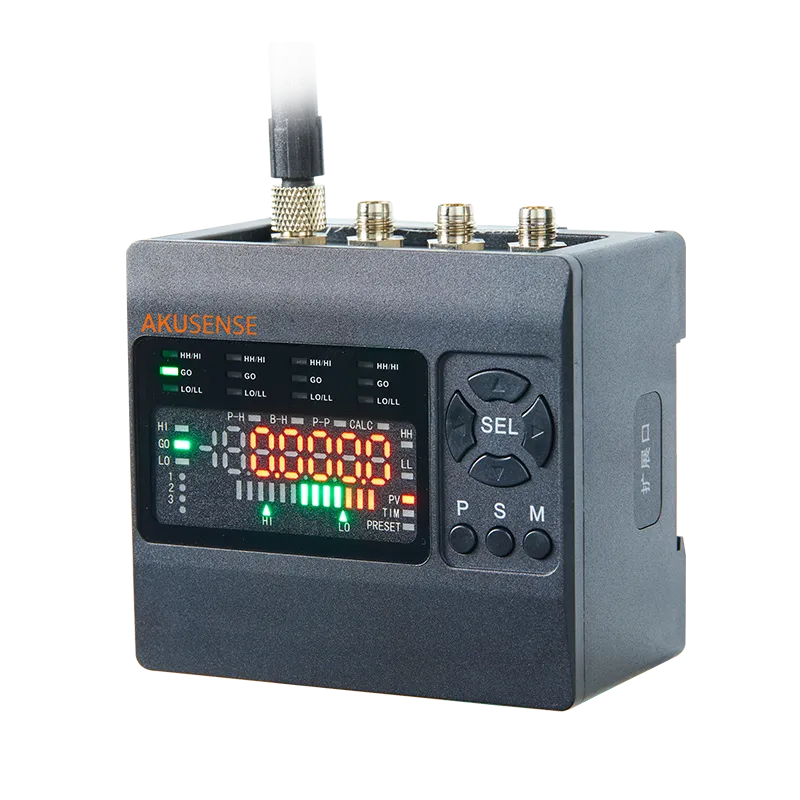

CR-M01
CR-M01
Normál ár
€248,92 EUR
Normál ár
Akciós ár
€248,92 EUR
Egységár
/
/
Nem sikerült betölteni az átvehetőségi adatokat
Share
| Model | CR-M01 |
| Category | Contact Displacement Sensor |
| Communication protocol | Modbus RTU |
| Housing | Square |
| Measuring range | - |
| Optical working principle | - |
| Output Mode | RS232/RS485 |
| Reference distance | - |
| Working principle | - |
| Accessories | The main controller can be equipped with up to 4 sub-controllers and up to 20 sensor heads, each sensor head needs to be equipped with 1 CA08FF-S4F2C for use |
| Ambient illumination | - |
| Communication mode | - |
| Connection type | - |
| Controls the output | NPN output, maximum output 20mA |
| Control the input | Timing, preset, reset, channel input, no voltage input |
| Current consumption | - |
| Data output rate | - |
| Dielectric strength | - |
| Dimension | 78.3x87.3x51.4mm |
| Enclosure rating | - |
| Expandable number | 1 main control module, expandable up to 4 sub-control modules |
| Input voltage | - |
| Insulation sesistance | - |
| Light source | - |
| Linearity | - |
| Load current | - |
| Material | Body: ABS Key: ABS panel: MMA cable: PVC |
| Measure force | - |
| Number of sensors that can be connected | 4 |
| Operating humidity | 35~80% RH (non-condensing) |
| Operating temperature | -10~60℃(without freezing) |
| Operating voltage | 12~24VDC |
| Output voltage | - |
| Power consumption | ≤240mW(missed sensor, missed tap control module) |
| Precision | - |
| Protection circuit | - |
| Repeatability | - |
| Resolution | 5μm/1μm/0.5μm/0,2μm(displayed according to type of sensor head) |
| Response time | 50/100/500/1000ms(changed in function parameter Settings) |
| Sampling frequency | - |
| Spot size | - |
| Switching mode | - |
| Temperature drift characteristics | - |
| Use pressure range | - |
| Vibration resistance | - |
| Weight | The main control module is about 201.6g |
| Working mode | - |
