AKUSENSE

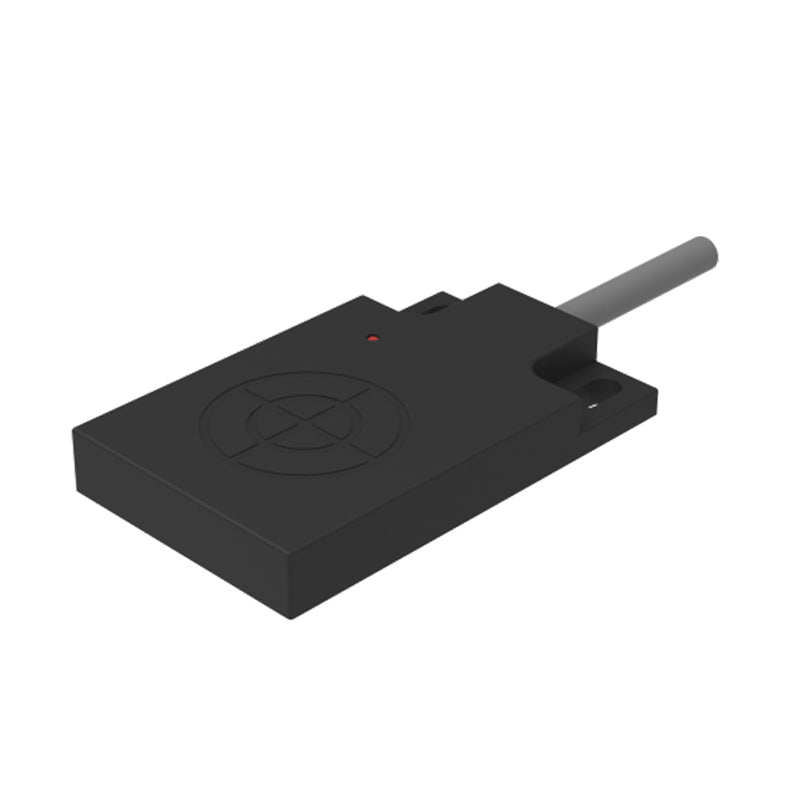

CQ07-10NC
CQ07-10NC
Normál ár
€24,73 EUR
Normál ár
Akciós ár
€24,73 EUR
Egységár
/
/
Nem sikerült betölteni az átvehetőségi adatokat
Share
| Model | CQ07-10NC |
| Category | Capacitive Sensors |
| Housing | Flat blocks |
| Installation type | - |
| Output Mode | NPN |
| Sensing distance | 10mm |
| Sensor Type | Flat Type |
| Switching output | Normally closed |
| Thread size | — |
| Accessories | - |
| Circuit Protection | Reverse polarity protection/short circuit protection/pulse overvoltage protection |
| Connection type | 2m/3 wire cable |
| Current consumption | ≤10mA |
| Detected objects | Metal, liquid, powder, wood, paper, plastic and other materials |
| Detects pipe wall thickness | - |
| Detect pipe size | — |
| Dielectric strength | 1000VAC (50/60Hz), 1 minute between the power terminal and housing |
| Dimension | 50.6x30.3x7.0mm |
| Enclosure rating | IP67 |
| External input | None |
| Hysteresis | - |
| Indicator | Operating status: LED |
| Insulation resistance | ≥50MΩ (500VDC) between power terminal and housing |
| Leakage current | < 0.01 mA |
| Load current | ≤50mA |
| Material | Plastic |
| Operating Humidity | 35~85% |
| Operating Temperature | -30~75℃ |
| Operating Voltage | 24V DC |
| Repeatability | 0.05 |
| Residual Voltage | 1.5 V or less |
| Sensing range adjustment | Available |
| Sensing surface material | - |
| Sensor Type | Flat Type |
| Switching frequency | 0.1 kHz |
| Vibration resistance | 10 to 55Hz, amplitude 1.5mm, X/Y/Z axis, 2 hours each |
| Weight | 0.05kg |
