AKUSENSE

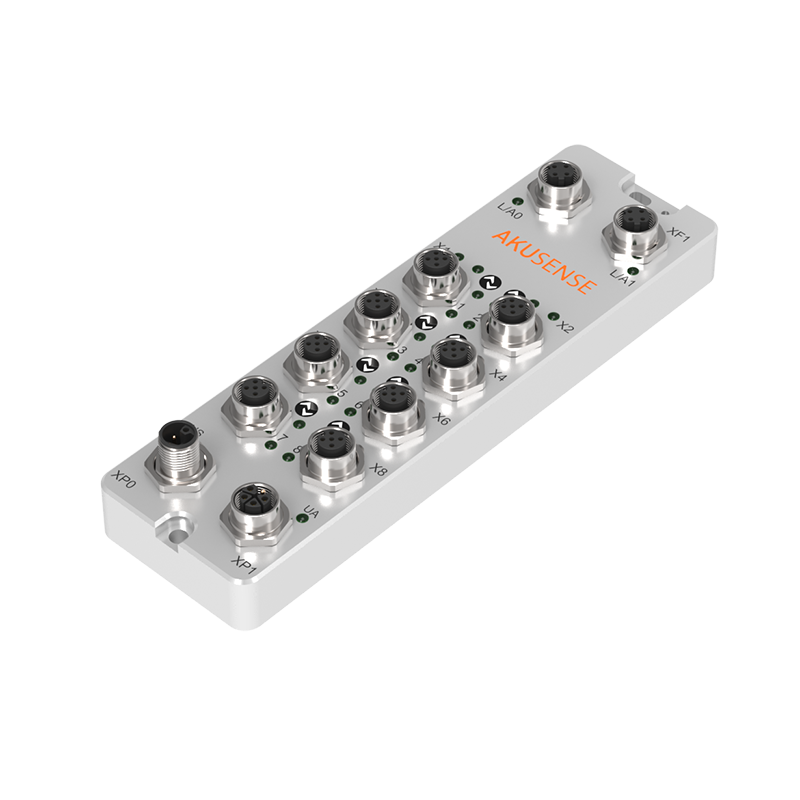

CIO200-PNIO-8A
CIO200-PNIO-8A
Normál ár
€373,01 EUR
Normál ár
Akciós ár
€373,01 EUR
Egységár
/
/
Nem sikerült betölteni az átvehetőségi adatokat
Share
| Model | CIO200-PNIO-8A |
| Category | IO-Link Module |
| Alarm function | Diagnostic alarm, process alarm |
| Application environment | Conforms to EN-61131 |
| Auxiliary Power Supply Voltage ua | 18 to 30 VDC (type.24VDC) |
| Certification | CE,RoHS |
| Characteristics | Compliant with protocol features |
| ClassB Auxiliary Current | - |
| ClassB Auxiliary Voltage | - |
| Class A | 8 bites, X1~X8 |
| Class B | - |
| Communication port fastening torque | M12:0.5 Nm |
| Communication protocol | ProfiNet protocol |
| Communication rate | COM1:4.8KBps; COM2:38.4KBps; COM3:230.4KBps |
| Connection method | 2 × M12 D-code; 4- core hole holder; |
| Electromagnetic compatibility (EMC) | Comply with IEC61000-4-2,-3,-4 |
| Enter quantity | 8 way, adaptive |
| External dimensions | 205mm×60mm×34.4mm |
| Free fall testing | Comply with IEC60068-32 |
| How the master station is connected | M12, 5-core, A-code, female head |
| I/O port fastening torque | M12:0.5Nm |
| Indicator light -BF | Red: Internal error; Red blinking: device name /IP address / The module group status is incorrect |
| Indicator light -ERR | - |
| Indicator light -I/O | Green: The channel signal is normal. Red: The port power supply is short-circuited |
| Indicator light -IO-LINK | Green: port operation (running) status; Green fast blinking: The port is being connected or an incorrect device is running. Green slow blinking: the port is in the pre-operation state. Green Off: The port is closed |
| Indicator light -LINK | Green: The link is normal; Yellow flash: Link is normal, data communication is normal; Off: The link is not established |
| Indicator light -MS | - |
| Indicator light -NS | - |
| Indicator Light -PWR | Green: The power supply of the module is normal. Red: The power supply of the module is reversed |
| Indicator light -RUN | - |
| Indicator light -SF | Red: Module failure |
| Input current | type.5mA (via US) |
| Input polarity | PNP |
| Installation hole specifications | Φ4.5mm×1 ；Φ5.5mm×1 |
| IO-Link | - |
| IO-Link handles data length | - |
| IO-link version | V1.1.2 |
| Master Station - Slave station communication distance | ≤20 m |
| Maximum Load Current (Actuator) | - |
| Maximum load current (sensor) | - |
| Minimum cycle | - |
| Minimum cycle time | 1ms |
| Number of inputs, outputs | - |
| Number of IO-Link ports | - |
| Number of main station ports | Up to 8 ports can be configured |
| Number of outputs | 8 way, adaptive |
| Operating atmospheric pressure | 80KPa~106KPa |
| Operating humidity | 5%~95% |
| Operating temperature | -25℃~70℃ |
| Output current | Single channel 2A (via UA) |
| Output port location | X1~X8 |
| Physicallayer | Ethernet |
| Port Current L+ | 2A (via US) |
| Port Protection | Power supply short circuit protection, power supply port overload protection |
| Port Voltage L+ | type.24VDC (via US) |
| Power reverse protection | There are |
| Power supply connection method | M12, 5-core, L-code, male/female head |
| Ptotect degree | IP67, epoxy full potting |
| Rated operating voltage | - |
| Shell color | Metallic silver primary color |
| Shell material | Aluminum alloy |
| Shock testing | Comply with IEC60068-27 |
| Signal "0" voltage | 0.3 ~ 5 VDC |
| Signal "1" voltage | 12~30VDC |
| SSystem power supply voltage us | 18 to 30 VDC (type.24VDC) |
| Static Operating Current Ic | ≤150mA |
| Storage/transport atmospheric pressure | 80KPa~106KPa |
| Storage/transport humidity | 5%~95% |
| Storage/transport temperature | -40℃~85℃ |
| Total Current Ia | 12A |
| Total Current Is | 12A |
| Total Current UI | - |
| Total Current UO | - |
| Transmission speed | 10/100 Mbps, full duplex |
| Vibration testing | Comply with IEC60068-2 |
| Weight | 515g |
| Master - Master communication distance | ≤100 m |
| Power port tightening torque | M12:0.5 Nm |
