AKUSENSE

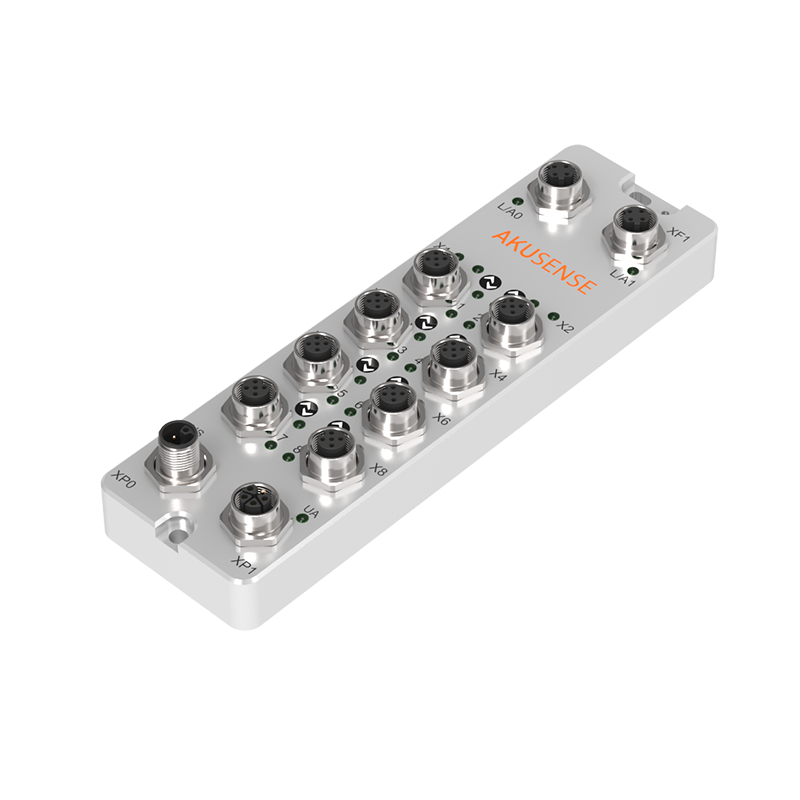

CIO200-PNIO-4A4B
CIO200-PNIO-4A4B
Normál ár
€404,09 EUR
Normál ár
Akciós ár
€404,09 EUR
Egységár
/
/
Nem sikerült betölteni az átvehetőségi adatokat
Share
| Model | CIO200-PNIO-4A4B |
| Category | IO-Link Module |
| Alarm function | - |
| Application environment | - |
| Auxiliary Power Supply Voltage ua | - |
| Certification | - |
| Characteristics | - |
| ClassB Auxiliary Current | 2A (via UA) |
| ClassB Auxiliary Voltage | type.24VDC (via UA) |
| Class A | 4 bites, X1~X4 |
| Class B | 4 bites, X5~X8 |
| Communication port fastening torque | - |
| Communication protocol | ProfiNet protocol |
| Communication rate | COM1:4.8KBps; COM2:38.4KBps; COM3:230.4KBps |
| Connection method | - |
| Electromagnetic compatibility (EMC) | - |
| Enter quantity | 4 way, adaptive |
| External dimensions | — |
| Free fall testing | - |
| How the master station is connected | M12, 5-core, A-code, female head |
| I/O port fastening torque | — |
| Indicator light -BF | Red: Internal error; Red blinking: device name /IP address / The module group status is incorrect |
| Indicator light -ERR | - |
| Indicator light -I/O | Green: The channel signal is normal. Red: The port power supply is short-circuited |
| Indicator light -IO-LINK | Green: port operation (running) status; Green fast blinking: The port is being connected or an incorrect device is running. Green slow blinking: the port is in the pre-operation state. Green Off: The port is closed |
| Indicator light -LINK | Green: The link is normal; Yellow flash: Link is normal, data communication is normal; Off: The link is not established |
| Indicator light -MS | - |
| Indicator light -NS | - |
| Indicator Light -PWR | Green: The power supply of the module is normal. Red: The power supply of the module is reversed |
| Indicator light -RUN | - |
| Indicator light -SF | Red: Module failure |
| Input current | type.5mA (via US) |
| Input polarity | PNP |
| Installation hole specifications | — |
| IO-Link | - |
| IO-Link handles data length | - |
| IO-link version | V1.1.2 |
| Master Station - Slave station communication distance | ≤20 m |
| Maximum Load Current (Actuator) | - |
| Maximum load current (sensor) | - |
| Minimum cycle | - |
| Minimum cycle time | - |
| Number of inputs, outputs | - |
| Number of IO-Link ports | - |
| Number of main station ports | Up to 8 ports can be configured |
| Number of outputs | 4 way, adaptive |
| Operating atmospheric pressure | — |
| Operating humidity | — |
| Operating temperature | — |
| Output current | Single channel 2A (via UA) |
| Output port location | X1~X4 |
| Physicallayer | - |
| Port Current L+ | 2A (via US) |
| Port Protection | Power supply short circuit protection, power supply port overload protection |
| Port Voltage L+ | type.24VDC (via US) |
| Power reverse protection | - |
| Power supply connection method | - |
| Ptotect degree | - |
| Rated operating voltage | - |
| Shell color | - |
| Shell material | - |
| Shock testing | - |
| Signal "0" voltage | 0.3 ~ 5 VDC |
| Signal "1" voltage | 12~30VDC |
| SSystem power supply voltage us | - |
| Static Operating Current Ic | - |
| Storage/transport atmospheric pressure | — |
| Storage/transport humidity | — |
| Storage/transport temperature | — |
| Total Current Ia | - |
| Total Current Is | - |
| Total Current UI | - |
| Total Current UO | - |
| Transmission speed | - |
| Vibration testing | - |
| Weight | — |
| Master - Master communication distance | ≤100 m |
| Power port tightening torque | - |
