AKUSENSE

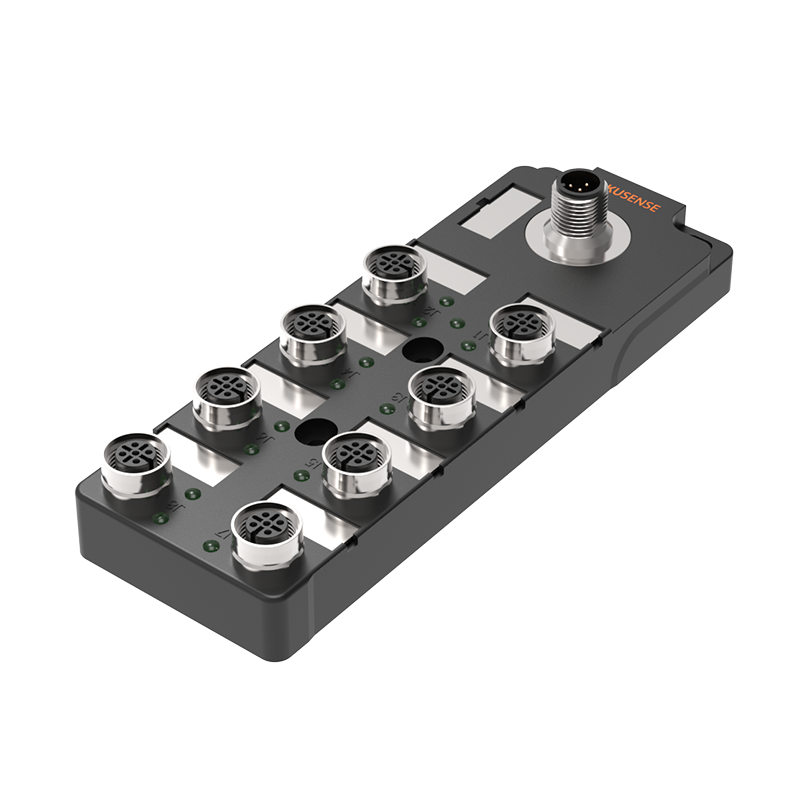

CIO100-M12-DI16P
CIO100-M12-DI16P
Normál ár
€103,61 EUR
Normál ár
Akciós ár
€103,61 EUR
Egységár
/
/
Nem sikerült betölteni az átvehetőségi adatokat
Share
| Model | CIO100-M12-DI16P |
| Category | IO-Link Module |
| Alarm function | - |
| Application environment | Conforms to EN-61131 |
| Auxiliary Power Supply Voltage ua | - |
| Certification | CE,RoHS |
| Characteristics | - |
| ClassB Auxiliary Current | - |
| ClassB Auxiliary Voltage | - |
| Class A | - |
| Class B | - |
| Communication port fastening torque | - |
| Communication protocol | - |
| Communication rate | - |
| Connection method | - |
| Electromagnetic compatibility (EMC) | Comply with IEC61000-4-2,-3,-4 |
| Enter quantity | - |
| External dimensions | 155mm×53mm×28.7mm |
| Free fall testing | Comply with IEC60068-32 |
| How the master station is connected | - |
| I/O port fastening torque | M12:0.5Nm |
| Indicator light -BF | - |
| Indicator light -ERR | - |
| Indicator light -I/O | Green: The channel signal is normal. Red: The port is faulty |
| Indicator light -IO-LINK | - |
| Indicator light -LINK | - |
| Indicator light -MS | - |
| Indicator light -NS | - |
| Indicator Light -PWR | Green: The power supply to the module is normal; Off: The power supply to the module is not connected |
| Indicator light -RUN | Green: The communication is down. Blinking green: The communication is normal. Red: The communication is interrupted |
| Indicator light -SF | - |
| Input current | - |
| Input polarity | PNP |
| Installation hole specifications | Φ4.3mm × 4 |
| IO-Link | Class A |
| IO-Link handles data length | 2 input bytes |
| IO-link version | - |
| Master Station - Slave station communication distance | - |
| Maximum Load Current (Actuator) | - |
| Maximum load current (sensor) | 200 mA |
| Minimum cycle | 3 ms |
| Minimum cycle time | - |
| Number of inputs, outputs | 16 inputs |
| Number of IO-Link ports | 1 x equipment |
| Number of main station ports | - |
| Number of outputs | - |
| Operating atmospheric pressure | 80KPa~106KPa |
| Operating humidity | 5%~95% |
| Operating temperature | -25℃~70℃ |
| Output current | - |
| Output port location | - |
| Physicallayer | - |
| Port Current L+ | - |
| Port Protection | - |
| Port Voltage L+ | - |
| Power reverse protection | - |
| Power supply connection method | - |
| Ptotect degree | IP67, epoxy full potting |
| Rated operating voltage | 18~30V DC |
| Shell color | black |
| Shell material | PA6 + GF |
| Shock testing | Comply with IEC60068-27 |
| Signal "0" voltage | - |
| Signal "1" voltage | - |
| SSystem power supply voltage us | - |
| Static Operating Current Ic | - |
| Storage/transport atmospheric pressure | 80KPa~106KPa |
| Storage/transport humidity | 5%~95% |
| Storage/transport temperature | -40℃~85℃ |
| Total Current Ia | - |
| Total Current Is | - |
| Total Current UI | < 1.6A |
| Total Current UO | - |
| Transmission speed | - |
| Vibration testing | Comply with IEC60068-2 |
| Weight | 217g |
| Master - Master communication distance | - |
| Power port tightening torque | - |
